MATE-12B-8-13 Series

Catalog

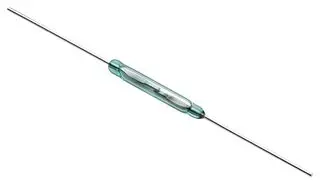

REED SWITCH, SUBMINIATURE, MATE-12B SERIES, SPST-NO, THROUGH HOLE, 500 MA, 200 VDC, 10 W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Length - Overall [x]	Length - Overall	Operate Time	Circuit	Size - Body [x]	Size - Body [diameter]	Size - Body [x]	Size - Body [diameter]	Current - Carry	Voltage - Switching DC	Operate Range [Max]	Operate Range [Min]	Release Time	Capacitance	Power - Rated	Current - Switching	Type	Mounting Type	Termination Style
Littelfuse/Commercial Vehicle Products MATE-12B-8-13	125 °C	-40 °C	1.59 in	40.39 mm	0.6 ms	SPST-NO	0.5 in	1.8 mm	12.7 mm	0.071 in	1 A	200 V	13 AT	8	0.2 ms	0.7 pF	10 W	500 mA	Glass Body Reed	Through Hole	Axial

• Prolong operating life cycles

• Hermitically sealed

• Miniature normally open switch

• cULus recognition

• RoHS compliant
