ISL81801 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

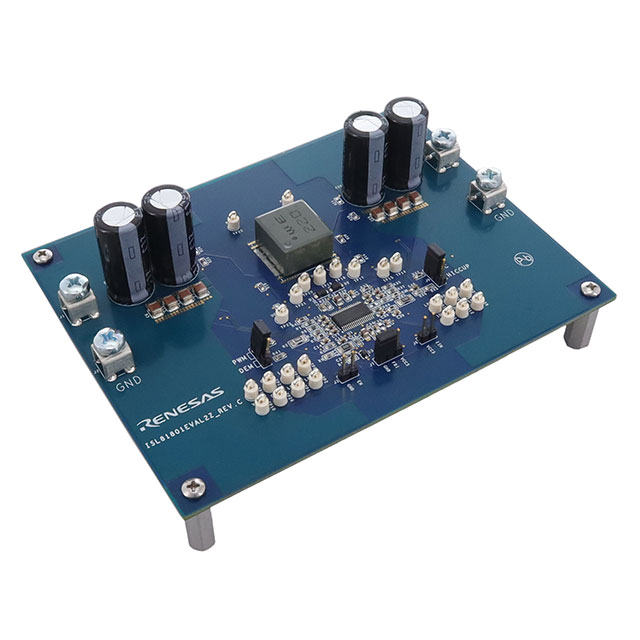

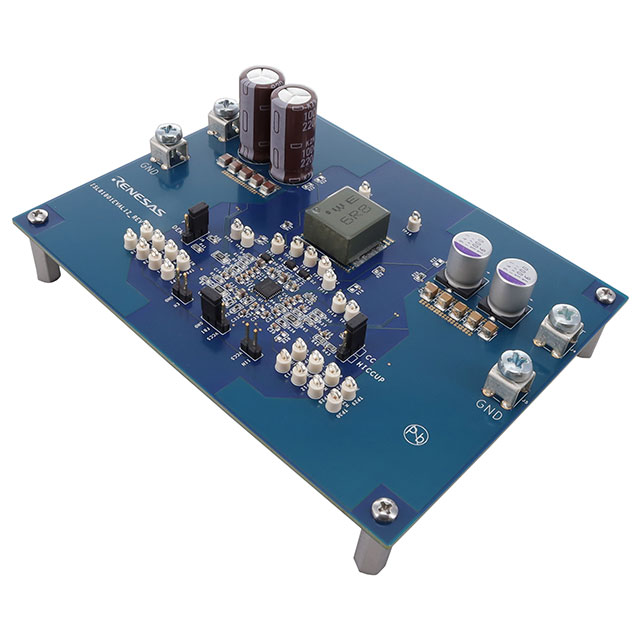

EVAL BOARD FOR ISL81801
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Board Type | Regulator Topology | Utilized IC / Part | Outputs and Type | Outputs and Type | Voltage - Output | Main Purpose | Current - Output | Frequency - Switching | Mounting Type | Frequency - Switching [Max] | Frequency - Switching [Min] | Output Configuration | Topology | Output Type | Control Features | Clock Sync | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Function | Supplier Device Package | Number of Outputs | Output Phases | Synchronous Rectifier |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 32 V | 80 V | Board(s) | Fully Populated | Buck-Boost | ISL81801 | Non-Isolated | 1 | 48 V | DC/DC Step Up or Down | 5 A | 200 kHz | |||||||||||||||||

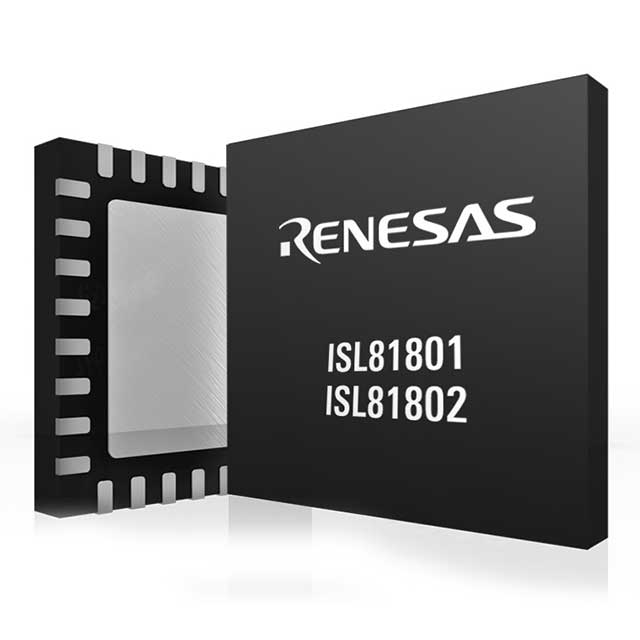

 Renesas Electronics Corporation | Surface Mount | 600 kHz | 100 kHz | Positive | Buck-Boost | Transistor Driver | Current Limit Enable Off Time Control On Time Control Phase Control Power Good Power on Reset Pulse Skipping Ramp Sequencing Soft Start Tracking | -40 °C | 125 °C | 4.5 V | 80 V | Step-Up/Step-Down | 32-TQFN (5x5) | 1 | 2 | ||||||||||||||
 Renesas Electronics Corporation | 9 VDC | 80 V | Board(s) | Fully Populated | Buck-Boost | ISL81801 | Non-Isolated | 1 | 12 V | DC/DC Step Up or Down | 10 A | 200 kHz |
