282854 Series

Catalog

TERMI-BLOK PCB MOUNT 180 3P.

Part	Wire Termination	Color	Screw Material - Plating	Mating Orientation	Mounting Type	Pitch [x]	Pitch [x]	Number of Levels	Wire Gauge [Max]	Wire Gauge [Min]	Screw Thread	Torque - Screw	Torque - Screw	Current	Features	Positions Per Level	Contact Material - Plating [custom]	Voltage	Clamp Material - Plating

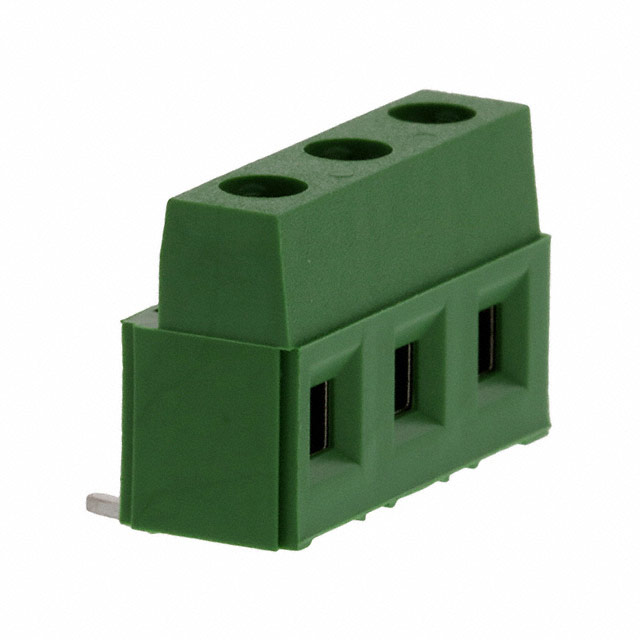

TE Connectivity Raychem Cable Protection 282854-3	Screw - Rising Cage Clamp	Green	Brass - Nickel Plated	Vertical with Board	Through Hole	0.295 in	7.5 mm	1	30 AWG	12 AWG	M3	0.79 Nm	7 Lb-In	17.5 A	Interlocking (Side)	3	Brass - Tin Plated	300 V	Brass - Nickel Plated
TE Connectivity Raychem Cable Protection 282854-4	Screw - Rising Cage Clamp	Green	Brass - Nickel Plated	Vertical with Board	Through Hole	0.295 in	7.5 mm	1	30 AWG	12 AWG	M3	0.79 Nm	7 Lb-In	17.5 A	Interlocking (Side)	4	Brass - Tin Plated	300 V	Brass - Nickel Plated
