Potter & Brumfield KUP Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
POWER RELAY 12VDC 10A DPDT(38.89X38.89X35.71)MM PANEL
| Part | Coil Resistance | Approval Agency | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Relay Type | Coil Current | Load - Max Switching | Mounting Type | Must Operate Voltage | Operate Time | Contact Rating (Current) | Switching Voltage [Max] | Termination Style | Coil Type | Contact Material | Contact Form | Coil Insulation | Coil Voltage | For Use With/Related Products | Accessory Type | Termination Style | Features | Number of Positions | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 120 Ohms | CSA UR | 10 ms | -45 °C | 70 °C | General Purpose | 0.1 A | 2400 VA | Chassis Mount | 9 VDC | 15 ms | 10 A | 240 VAC | Quick Connect | Non Latching | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | Class B | 12 VDC | ||||||
 TE Connectivity AMP Connectors | KU Series | Clip Hold Down | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | CSA UR | 10 ms | -45 °C | 55 °C | General Purpose | 13.2 mA | 2400 VA | Chassis Mount | 204 VAC | 15 ms | 10 A | 240 VAC | Plug In Quick Connect | Non Latching | DPDT (2 Form C) | Class B | 120 VAC | 0.187 in 4.7 mm | |||||||
 TE Connectivity AMP Connectors | CSA UR | 10 ms | -45 °C | 45 °C | General Purpose | 115 mA | 2400 VA | Socketable | 15 ms | 10 A | 240 VAC | Plug In Quick Connect | Non Latching | Silver Cadmium Oxide (AgCdO) | 3PDT (3 Form C) | Class B | 24 VAC | 0.187 in 4.7 mm | Lighted Indicator | ||||||
 TE Connectivity AMP Connectors | CSA UR | 10 ms | -45 °C | 45 °C | General Purpose | 24 mA | 2400 VA | Chassis Mount | 102 VAC | 15 ms | 10 A | 240 VAC | Quick Connect | Non Latching | Silver Cadmium Oxide (AgCdO) | 3PDT (3 Form C) | Class B | 120 VAC | |||||||
 TE Connectivity AMP Connectors | CSA UR | 10 ms | -45 °C | 70 °C | General Purpose | 11 mA | 1200 VA | Socketable | 82.5 VDC | 15 ms | 5 A | 240 VAC | Plug In Quick Connect | Non Latching | 3PDT (3 Form C) | Class B | 110 VDC | 0.187 in 4.7 mm | Lighted Indicator | ||||||
TE Connectivity AMP Connectors | CSA UR | 10 ms | -45 °C | 55 °C | General Purpose | 17.5 mA | 1200 VA | Socketable | 102 VAC | 15 ms | 5 A | 240 VAC | Plug In Quick Connect | Non Latching | Silver (Ag) | DPDT (2 Form C) | Class B | 120 VAC | 0.187 in 4.7 mm | ||||||
TE Connectivity AMP Connectors | 120 Ohms | CSA UR | 10 ms | -45 °C | 70 °C | General Purpose | 0.1 A | 2400 VA | Chassis Mount | 9 VDC | 15 ms | 10 A | 240 VAC | Quick Connect | Non Latching | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | Class B | 12 VDC | ||||||
TE Connectivity AMP Connectors | 472 Ohms | CSA UR | 10 ms | -45 °C | 70 °C | General Purpose | 51 mA | 2400 VA | Chassis Mount | 18 VDC | 15 ms | 10 A | 240 VAC | Quick Connect | Non Latching | Silver Cadmium Oxide (AgCdO) | 3PDT (3 Form C) | Class B | 24 VDC | ||||||

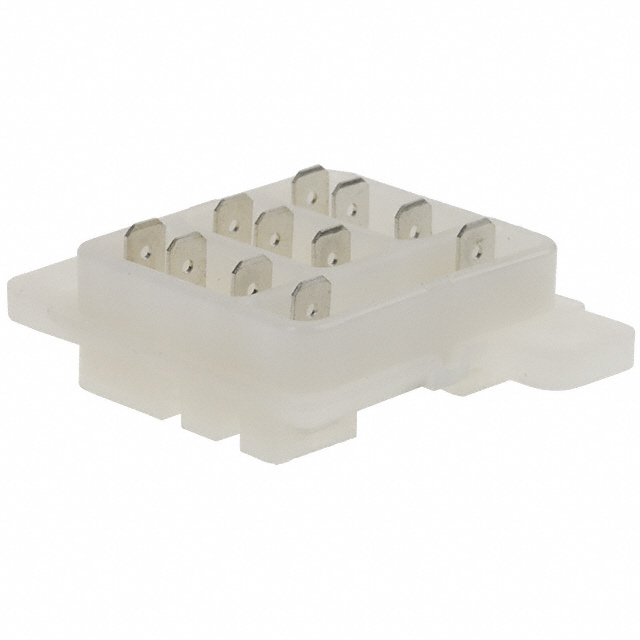

 TE Connectivity AMP Connectors | Chassis Mount | Quick Connect | KU Series | 11 | Socket |
