0.563 DOUBLE ROW Series
Barrier Terminal Blocks 6P .563 DR BARRIER W/WASHER
Manufacturer: TE Connectivity AMP Connectors
Catalog
Barrier Terminal Blocks 6P .563 DR BARRIER W/WASHER
Beta
⌘K
Barrier Terminal Blocks 6P .563 DR BARRIER W/WASHER
Barrier Terminal Blocks 6P .563 DR BARRIER W/WASHER
Barrier Terminal Blocks 6P .563 DR BARRIER W/WASHER
| Part | Number of Wire Entries | Features | Pitch | Pitch | Voltage Rating | Bottom Termination | Terminal Block Type | Number of Rows [custom] | Top Termination | Wire Gauge [Min] | Wire Gauge [Max] | Current Rating (Amps) | Number of Circuits | Barrier Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

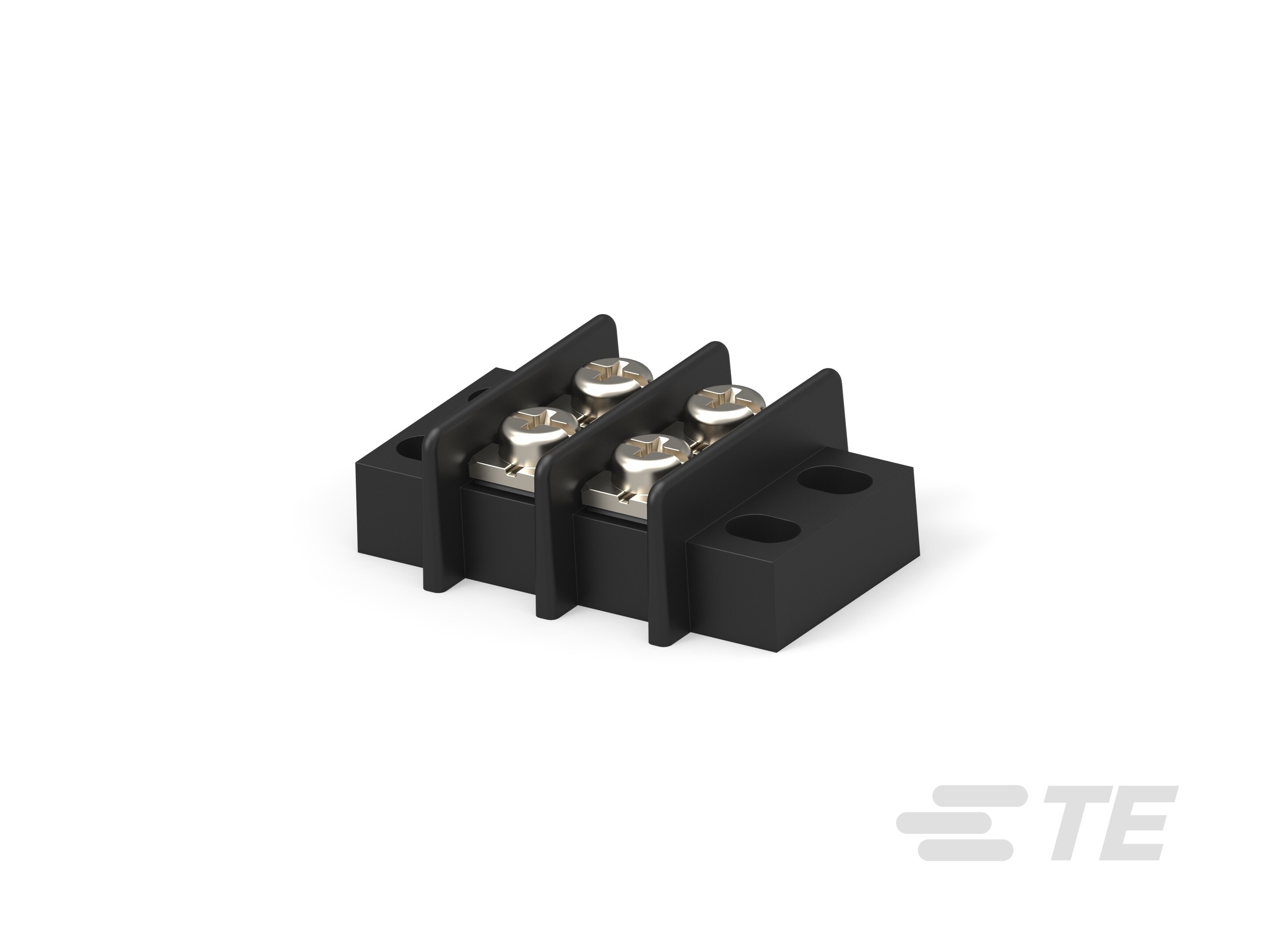

 TE Connectivity AMP Connectors | 4 | Flange | 11 mm | 0.433 in | 300 VDC | Closed | Barrier Block | 2 | Screws with Captive Plate | 14 AWG | 22 AWG | 25 A | 2 | 2 Wall (Dual) | Black |
 TE Connectivity AMP Connectors | 12 | Flange | 14.3 mm | 0.563 " | 300 VDC | Closed | Barrier Block | 2 | Screws with Captive Plate | 10 AWG | 22 AWG | 30 A | 6 | 2 Wall (Dual) | Black |
