OD9232 Series
Manufacturer: ORION FANS
Beta
⌘K

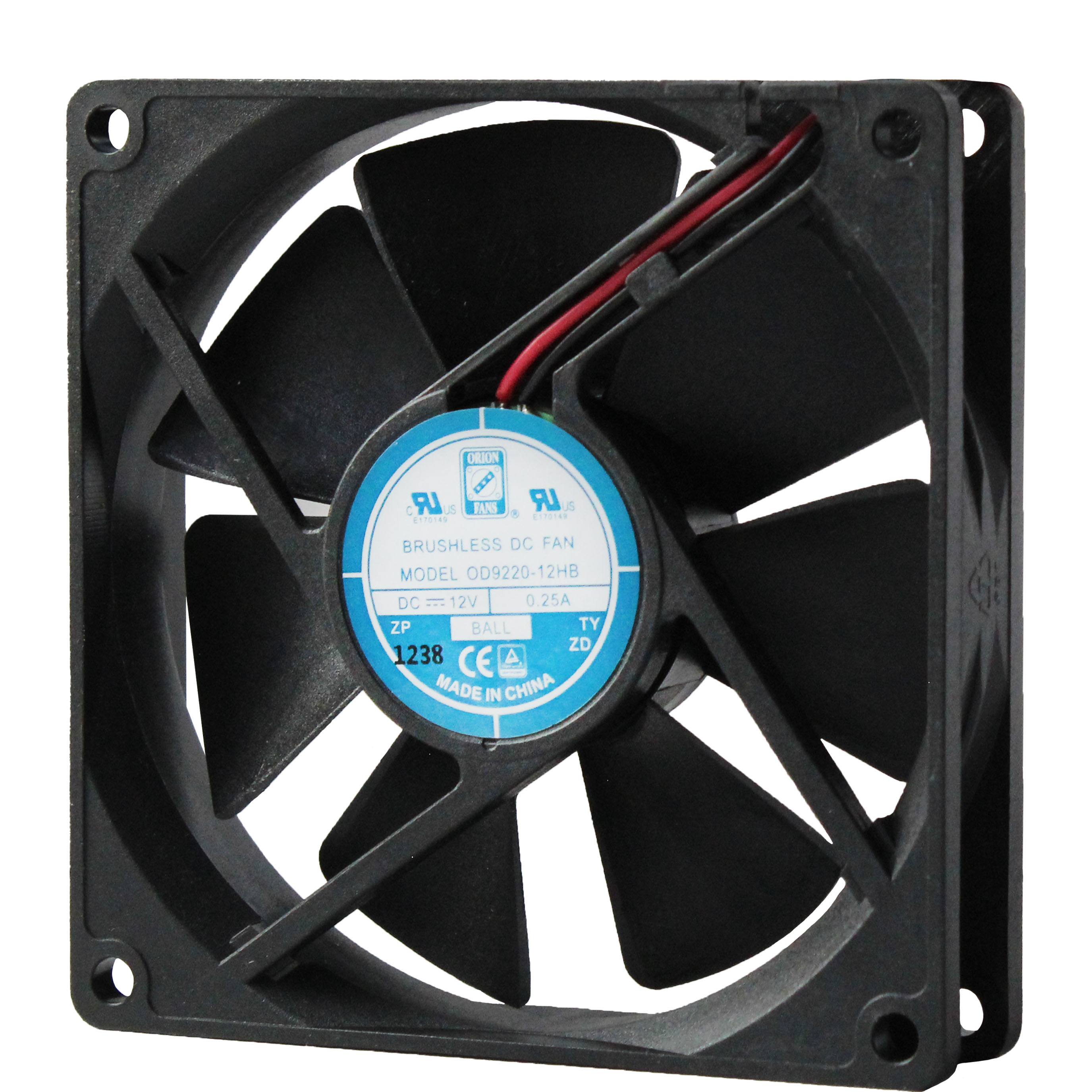

FAN AXIAL 92X32MM 12VDC WIRE
| Part | Material - Frame | Material - Blade | Voltage - Rated | Approval Agency | Width [y] | Bearing Type | Fan Type | Size / Dimension [y] | Size / Dimension [x] | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 12 VDC | cURus TUV | 32 mm | Ball | Tubeaxial | 92 mm | 92 mm | 2 Wire Leads | |
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 12 VDC | cURus TUV | 32 mm | Ball | Tubeaxial | 92 mm | 92 mm | 3 Wire Leads | Speed Sensor (Tach) |
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 12 VDC | cURus TUV | 32 mm | Ball | Tubeaxial | 92 mm | 92 mm | 3 Wire Leads | Locked Rotor Sensor |
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 12 VDC | cURus TUV | 32 mm | Ball | Tubeaxial | 92 mm | 92 mm | 2 Wire Leads | |
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 12 VDC | cURus TUV | 32 mm | Ball | Tubeaxial | 92 mm | 92 mm | 3 Wire Leads | Speed Sensor (Tach) |
 ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 12 VDC | cURus TUV | 32 mm | Ball | Tubeaxial | 92 mm | 92 mm | 3 Wire Leads | Locked Rotor Sensor |
