179228 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
WIRE-TO-BOARD CONNECTOR, AMP CT SERIES, CRIMP, RECEPTACLE, 9, 2 MM, TIN PLATED CONTACTS
| Part | Mounting Type | Insulation Material | Color | Contact Termination | Note | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

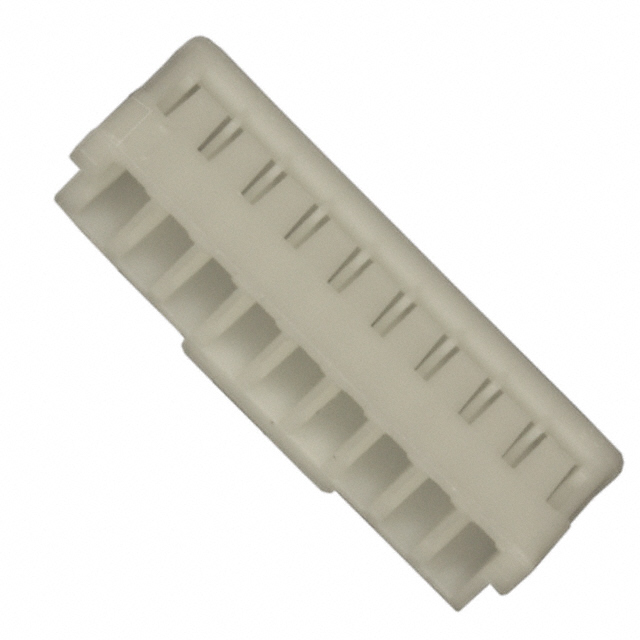

 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Natural | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 9 | 0.079 in | 2 mm | 1 | Receptacle |

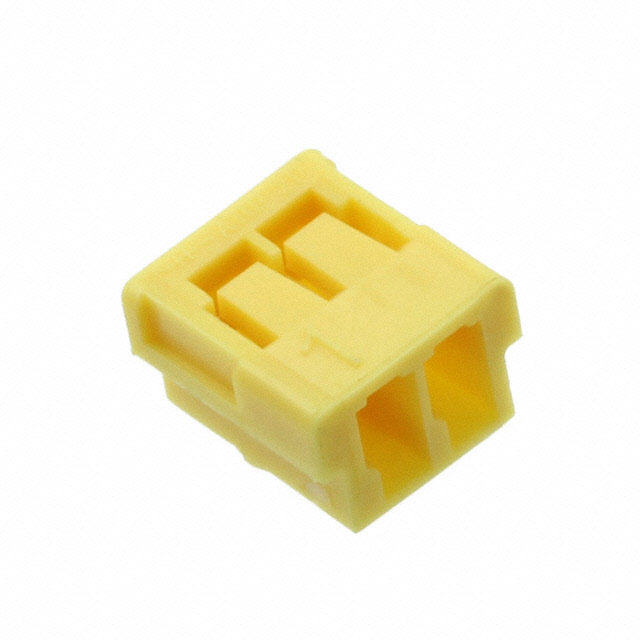

 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Yellow | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 2 | 0.079 in | 2 mm | 1 | Receptacle |

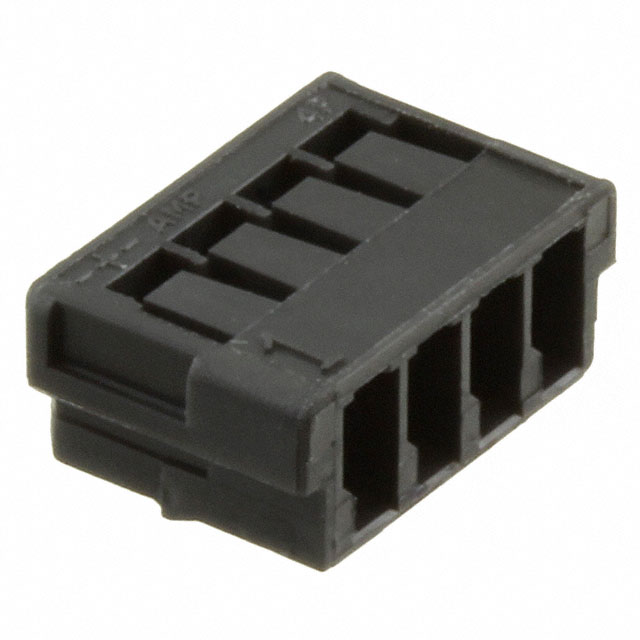

 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Black | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 4 | 0.079 in | 2 mm | 1 | Receptacle |
TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Black | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 8 | 0.079 in | 2 mm | 1 | Receptacle |
TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Yellow | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 4 | 0.079 in | 2 mm | 1 | Receptacle |
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Blue | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 0.079 in | 2 mm | 1 | Receptacle | |
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Natural | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 8 | 0.079 in | 2 mm | 1 | Receptacle |
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Natural | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 7 | 0.079 in | 2 mm | 1 | Receptacle |
TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Black | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 0.079 in | 2 mm | 1 | Receptacle | |

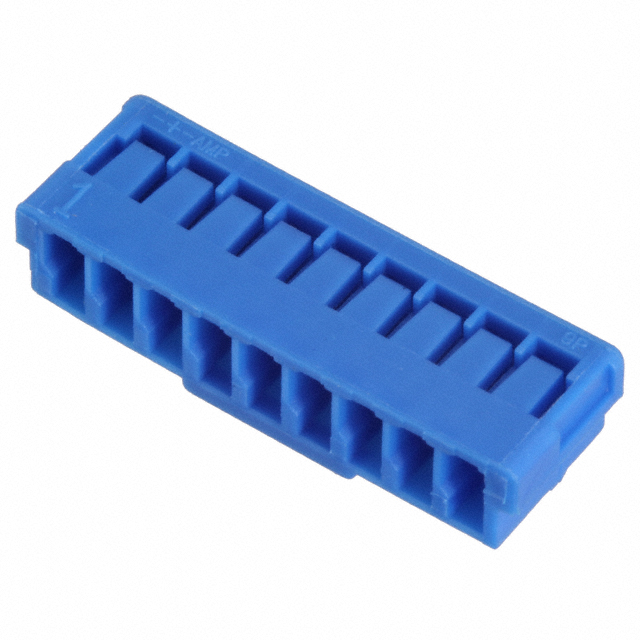

 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 | Blue | Crimp | Contacts Not Included | -30 ░C | 105 ░C | Female Socket | 9 | 0.079 in | 2 mm | 1 | Receptacle |
