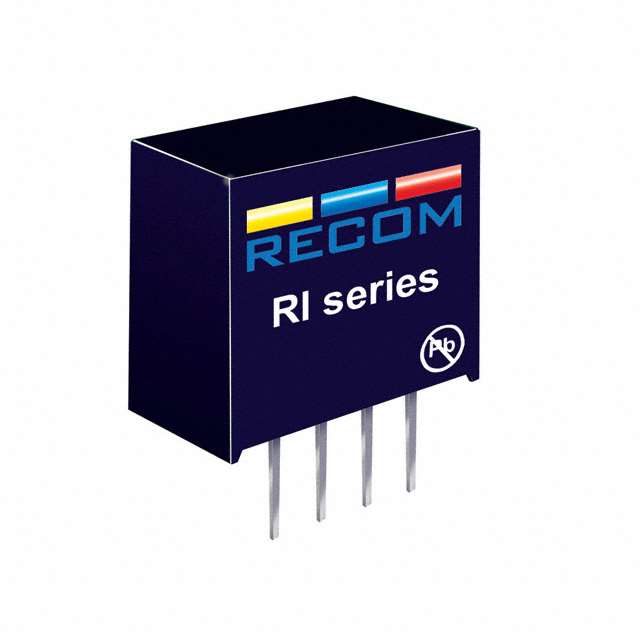

RI Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 1KV UNREG 15VIN 12VOUT

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Package / Case	Voltage - Input (Max) [Max]	Features	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Type	Power (Watts)	Applications

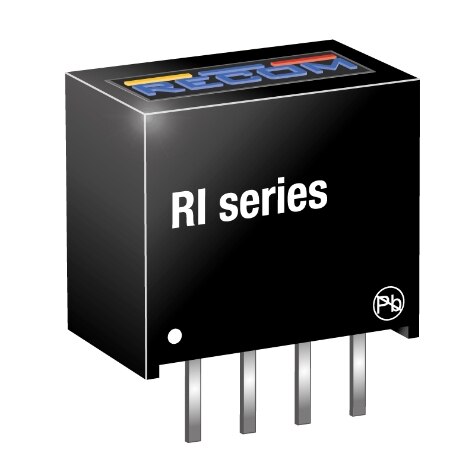

Recom Power RI-1512S	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	85 %	4-SIP Module	16.5 V	SCP	Through Hole	1	167 mA	13.5 V	1000 V	12 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
Recom Power RI-1212S/P	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	85 %	4-SIP Module	13.2 V	SCP	Through Hole	1	167 mA	10.8 V	1000 V	12 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
Recom Power RI-0505S/P	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	83 %	4-SIP Module	5.5 V	SCP	Through Hole	1	400 mA	4.5 V	1000 V	5.6 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
Recom Power RI-2412S	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	85 %	4-SIP Module	26.4 V	SCP	Through Hole	1	167 mA	21.6 V	1000 V	12 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
Recom Power RI-0515S	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	85 %	4-SIP Module	5.5 V	SCP	Through Hole	1	133 mA	4.5 V	1000 V	15 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
Recom Power RI-0512S/P	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	85 %	4-SIP Module	5.5 V	SCP	Through Hole	1	167 mA	4.5 V	1000 V	12 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
Recom Power RI-0512S	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	85 %	4-SIP Module	5.5 V	SCP	Through Hole	1	167 mA	4.5 V	1000 V	12 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
Recom Power RI-1205S/P	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	83 %	4-SIP Module	13.2 V	SCP	Through Hole	1	400 mA	10.8 V	1000 V	5 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
Recom Power RI-1212S	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	85 %	4-SIP Module	13.2 V	SCP	Through Hole	1	167 mA	10.8 V	1000 V	12 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
Recom Power RI-1505S	0.45 "	0.3 "	10.2 mm	11.5 mm	7.6 mm	0.4 "	83 %	4-SIP Module	16.5 V	SCP	Through Hole	1	400 mA	13.5 V	1000 V	5 V	85 °C	-40 C	Isolated Module	2 W	ITE (Commercial)
