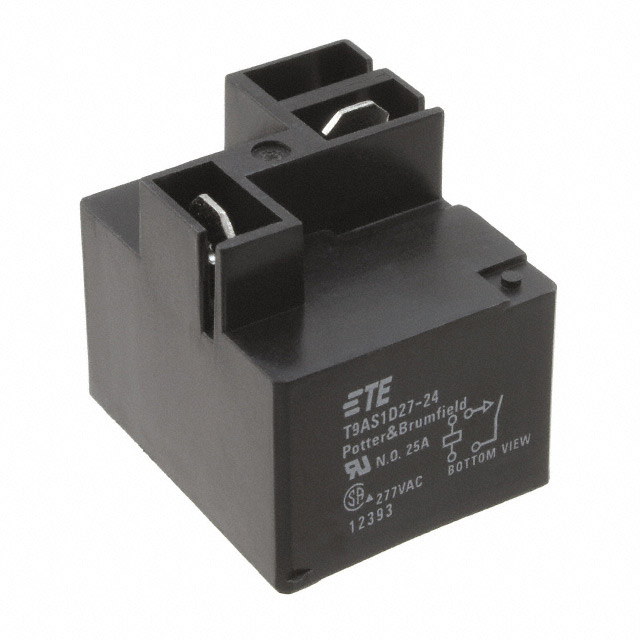

T9AS1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 5V
| Part | Coil Resistance | Contact Material | Contact Form | Operate Time | Coil Voltage | Release Time | Coil Insulation | Load - Max Switching [Max] | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Seal Rating | Relay Type | Switching Voltage [Max] | Must Release Voltage | Termination Style | Must Operate Voltage | Contact Rating (Current) | Mounting Type | Coil Type | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 25 Ohms | Silver Tin Oxide Indium Oxide (AgSnOInO) | SPST-NO (1 Form A) | 15 ms | 5 VDC | 15 ms | Class F | 8310 VA | 200 mA | -55 C | 85 °C | Sealed - Fully | General Purpose | 277 VAC | 0.5 VDC | PC Pin | 3.75 VDC | 30 A | Through Hole | Non Latching | |
 TE Connectivity AMP Connectors | 576 Ohms | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 15 ms | 24 VDC | 15 ms | Class F | 41.7 mA | -55 C | 85 °C | Sealed - Fully | General Purpose | 277 VAC | 2.4 VDC | PC Pin | 18 VDC | 21 A | Through Hole | Non Latching | 5817 VA | |
 TE Connectivity AMP Connectors | 144 Ohms | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 15 ms | 12 VDC | 15 ms | Class F | 8310 VA | 83 mA | -55 C | 85 °C | Sealed - Fully | General Purpose | 277 VAC | 1.2 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | 9 VDC | 30 A | Through Hole | Non Latching | |
 TE Connectivity AMP Connectors | 576 Ohms | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 15 ms | 24 VDC | 15 ms | Class F | 41.7 mA | -55 C | 85 °C | Sealed - Fully | General Purpose | 277 VAC | 2.4 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | 18 VDC | 21 A | Through Hole | Non Latching | 5817 VA | |
TE Connectivity AMP Connectors | 484 Ohms | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 15 ms | 22 VDC | 15 ms | Class F | 8310 VA | 45.5 mA | -55 C | 85 °C | Sealed - Fully | General Purpose | 277 VAC | 2.2 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | 16.5 VDC | 30 A | Through Hole | Non Latching | |
TE Connectivity AMP Connectors | 225 Ohms | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 15 ms | 15 VDC | 15 ms | Class F | 8310 VA | 66.7 mA | -55 C | 85 °C | Sealed - Fully | General Purpose | 277 VAC | 1.5 VDC | PC Pin Quick Connect - 0.250" (6.3mm) | 11.25 VDC | 30 A | Through Hole | Non Latching | |
 TE Connectivity AMP Connectors | 576 Ohms | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 15 ms | 24 VDC | 15 ms | 8310 VA | 41.7 mA | -55 C | 85 °C | General Purpose | 277 VAC | 2.4 VDC | PC Pin | 18 VDC | 30 A | Through Hole | Non Latching | |||
TE Connectivity AMP Connectors | 144 Ohms | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 15 ms | 12 VDC | 15 ms | 8310 VA | 83.3 mA | -55 C | 85 °C | General Purpose | 277 VAC | 1.2 VDC | PC Pin | 9 VDC | 30 A | Through Hole | Non Latching | |||
 TE Connectivity AMP Connectors | 484 Ohms | Silver Cadmium Oxide (AgCdO) | SPST-NO (1 Form A) | 15 ms | 22 VDC | 15 ms | Class F | 8310 VA | 45.5 mA | -55 C | 85 °C | Sealed - Fully | General Purpose | 277 VAC | 2.2 VDC | PC Pin | 16.5 VDC | 30 A | Through Hole | Non Latching |
