PRG21BB Series
Manufacturer: Murata Power Solutions Inc.
Beta
⌘K

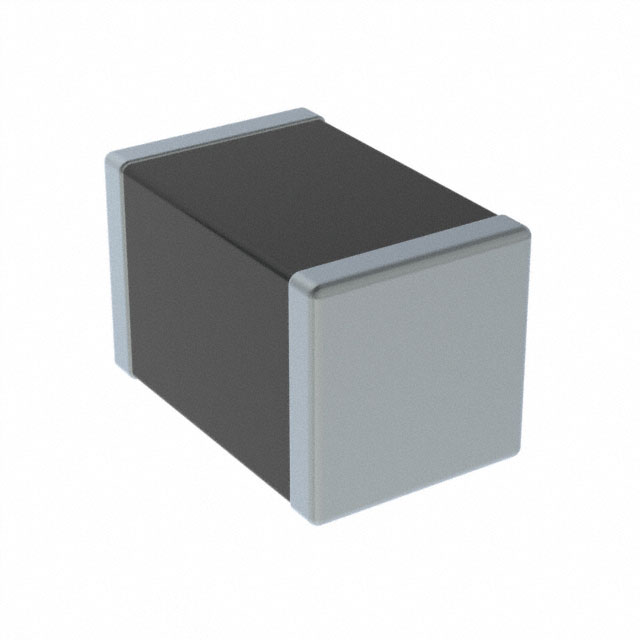

PTC RESET FUSE 20V 44MA 0805
| Part | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current - Hold (Ih) (Max) [Max] | Current - Trip (It) | Type | Voltage - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Max [Max] | Resistance - 25°C (Typ) | Thickness (Max) [Max] [custom] | Thickness (Max) | Approval Agency | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Power Solutions Inc. | Surface Mount | 2 mm | 0.079 in | 0.049 in | 1.25 mm | 44 mA | 91 mA | Ceramic | 20 V | -20 C | 60 °C | 1.1 A | 22 Ohms | 0.057 in | 1.45 mm | UL | 0805 |
