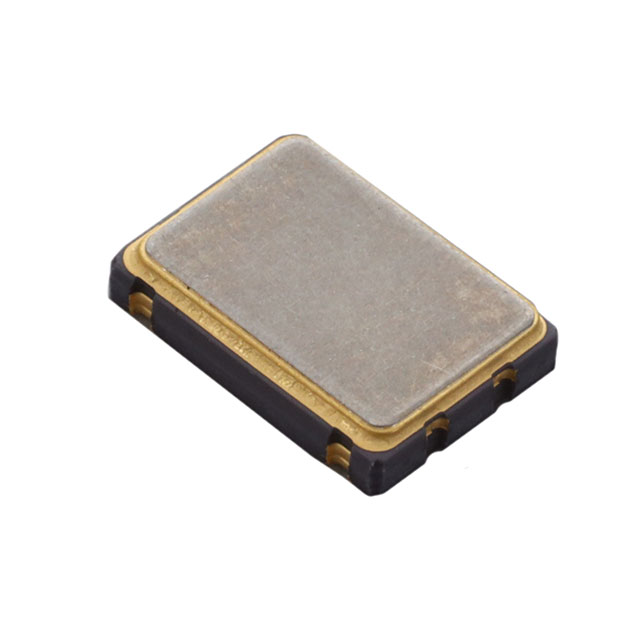

SG-8002 Series

Manufacturer: EPSON

Catalog

STANDARD CLOCK OSCILLATORS SMD OSC MHZ (O/E) 3.3V+/-100PPM-40~85C 250TR

Part	Function	Package / Case	Frequency	Mounting Type	Type	Output	Supplier Device Package	Current - Supply (Max) [Max]	Voltage - Supply	Base Resonator [custom]	Frequency Stability	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Disable) (Max)	Supplier Device Package [x]	Supplier Device Package [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Disable) (Max) [Max]
EPSON SG-8002CA 14.7456M-PCML3	Enable/Disable	4-SMD No Lead	14.7456 MHz	Surface Mount	XO (Standard)	CMOS	4-SMD (7x5)	28 mA	3.3 V	Crystal	100 ppm	5 mm	7 mm	0.197 "	0.276 "	0.059 "	1.5 mm	85 °C	-40 C
EPSON SG-8002CA 20.0000M-PHBB	Enable/Disable	4-SMD No Lead	20 MHz	Surface Mount	XO (Standard)	CMOS	4-SMD (7x5)	45 mA		Crystal	50 ppm	5 mm	7 mm	0.197 "	0.276 "	0.059 "	1.5 mm	70 °C	-20 ░C
EPSON SG-8002CA 32.0000M-PCML3	Enable/Disable	4-SMD No Lead	32 MHz	Surface Mount	XO (Standard)	CMOS	4-SMD (7x5)	28 mA	3.3 V	Crystal	100 ppm	5 mm	7 mm	0.197 "	0.276 "	0.059 "	1.5 mm	85 °C	-40 C
EPSON SG-8002CA 1.5440M-PTCB	Enable/Disable	4-SMD No Lead	1.544 MHz	Surface Mount	XO (Standard)	CMOS	4-SMD (7x5)	45 mA		Crystal	100 ppm	5 mm	7 mm	0.197 "	0.276 "	0.059 "	1.5 mm	70 °C	-20 ░C
EPSON SG-8002CE 14.7456M-PHMB	Enable/Disable	4-SMD No Lead	14.7456 MHz	Surface Mount	XO (Standard)	CMOS	4-SMD	40 mA		Crystal	100 ppm	2.5 mm	3.2 mm	0.098 in	0.126 "			85 °C	-40 C	30 mA	3.2	2.5	1.2 mm	0.047 "
EPSON SG-8002CE 40.0000M-PHCB	Enable/Disable	4-SMD No Lead	40 MHz	Surface Mount	XO (Standard)	CMOS	4-SMD	40 mA		Crystal	100 ppm	2.5 mm	3.2 mm	0.098 in	0.126 "			70 °C	-20 ░C	30 mA	3.2	2.5	1.2 mm	0.047 "
EPSON SG-8002CA 80.0000M-PHBL3	Enable/Disable	4-SMD No Lead	80 MHz	Surface Mount	XO (Standard)	CMOS	4-SMD (7x5)	45 mA		Crystal	50 ppm	5 mm	7 mm	0.197 "	0.276 "	0.059 "	1.5 mm	70 °C	-20 ░C	30 mA
EPSON SG-8002CA 1.7680M-PCCL3	Enable/Disable	4-SMD No Lead		Surface Mount	XO (Standard)	CMOS	4-SMD (7x5)	28 mA	3.3 V	Crystal	100 ppm	5 mm	7 mm	0.197 "	0.276 "	0.059 "	1.5 mm	70 °C	-20 ░C
EPSON SG-8002CA 66.0000M-PCMB	Enable/Disable	4-SMD No Lead	66 MHz	Surface Mount	XO (Standard)	CMOS	4-SMD (7x5)	28 mA	3.3 V	Crystal	100 ppm	5 mm	7 mm	0.197 "	0.276 "	0.059 "	1.5 mm	70 °C	-20 ░C
EPSON SG-8002CE 12.0960M-SCCB	Standby (Power Down)	4-SMD No Lead	12.096 MHz	Surface Mount	XO (Standard)	CMOS	4-SMD	28 mA	3.3 V	Crystal	50 ppm	2.5 mm	3.2 mm	0.098 in	0.126 "			70 °C	-20 ░C		3.2	2.5	1.2 mm	0.047 "	50 µA
