5592201 Series

Manufacturer: DIALIGHT

Catalog

LED PMI SNAP-IN GRN PVC FREE

Part	Lens Size	Lens Size	Voltage	Termination Style	Termination Style	Termination Style	Lens Color	Viewing Angle	Millicandela Rating	Lens Transparency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Panel Cutout Shape	Type	Wavelength - Peak	Current	Lamp Color	Lens Style

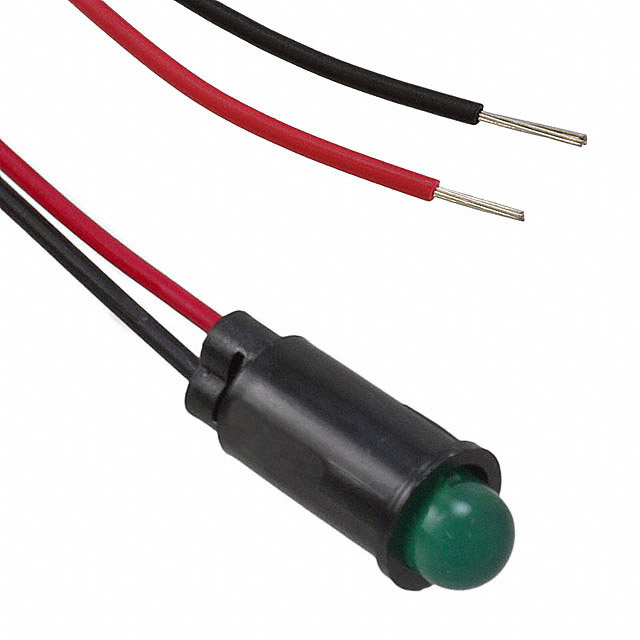

DIALIGHT 5592201027F	5 mm	T-1 3/4	2.1 V	Wire Leads	14 in	355.6 mm	Green	65 °	10 mcd	Diffused	6.35 mm	0.25 in	Round	LED	563 nm	25 mA	Green	Round with Domed Top
DIALIGHT 5592201813F	5 mm	T-1 3/4	2.1 V				Green	65 °	10 mcd	Diffused	6.35 mm	0.25 in	Round	LED	563 nm	25 mA	Green	Round with Domed Top

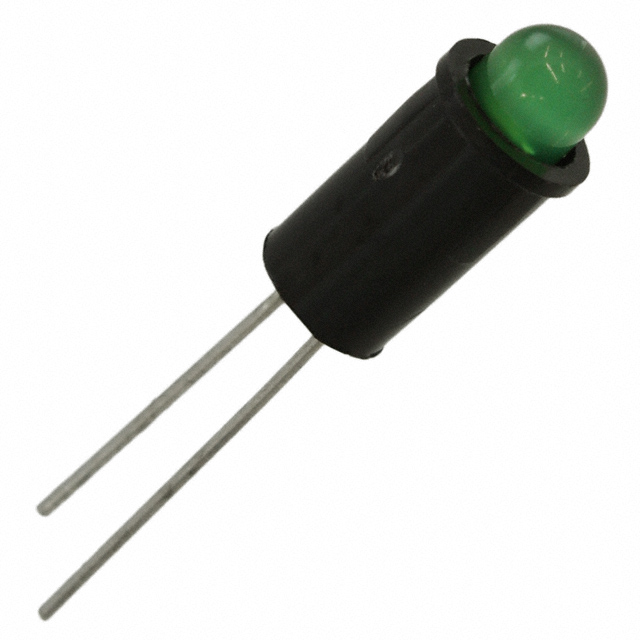

DIALIGHT 5592201001F	5 mm	T-1 3/4	2.1 V	PC Pin			Green	65 °	10 mcd	Diffused	6.35 mm	0.25 in	Round	LED	563 nm	25 mA	Green	Round with Domed Top
DIALIGHT 5592201817F	5 mm	T-1 3/4	2.1 V	Wire Leads	14 in	355.6 mm	Green	65 °	10 mcd	Diffused	6.35 mm	0.25 in	Round	LED	563 nm	25 mA	Green	Round with Domed Top

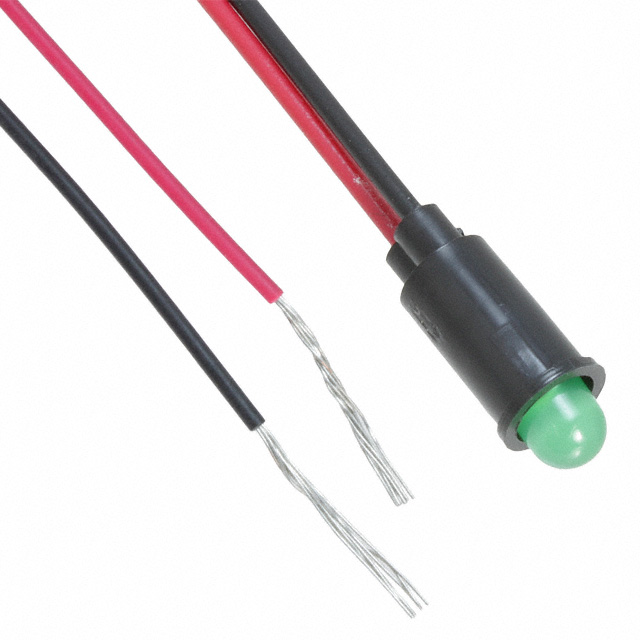

DIALIGHT 5592201003F	5 mm	T-1 3/4	2.1 V				Green	65 °	10 mcd	Diffused	6.35 mm	0.25 in	Round	LED	563 nm	25 mA	Green	Round with Domed Top
DIALIGHT 5592201814F	5 mm	T-1 3/4	2.1 V				Green	65 °	10 mcd	Diffused	6.35 mm	0.25 in	Round	LED	563 nm	25 mA	Green	Round with Domed Top
DIALIGHT 5592201815F	5 mm	T-1 3/4	2.1 V				Green	65 °	10 mcd	Diffused	6.35 mm	0.25 in	Round	LED	563 nm	25 mA	Green	Round with Domed Top
DIALIGHT 5592201811F	5 mm	T-1 3/4	2.1 V				Green	65 °	10 mcd	Diffused	6.35 mm	0.25 in	Round	LED	563 nm	25 mA	Green	Round with Domed Top
DIALIGHT 5592201023F	5 mm	T-1 3/4	2.1 V				Green	65 °	10 mcd	Diffused	6.35 mm	0.25 in	Round	LED	563 nm	25 mA	Green	Round with Domed Top
