R14109 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

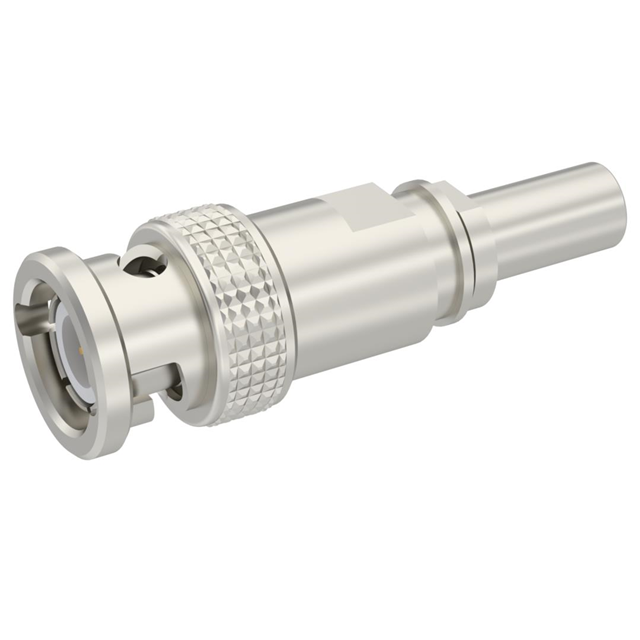

BNC / STRAIGHT PLUG CRIMP TYPE C
| Part | Body Material | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material | Body Finish | Shield Termination | Center Contact Material | Contact Termination | Connector Type | Mounting Type | Fastening Type | Number of Ports | Housing Color | Connector Style | Cable Group | Impedance | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 500 V | Gold | -65 ░C | 165 °C | 500 | Polytetrafluoroethylene (PTFE) | Nickel | Crimp | Brass | Crimp | Plug Male Pin | Free Hanging (In-Line) | Bayonet Lock | 1 | Silver | BNC | 223 400 RG-142 | 50 Ohms | 4 GHz |
