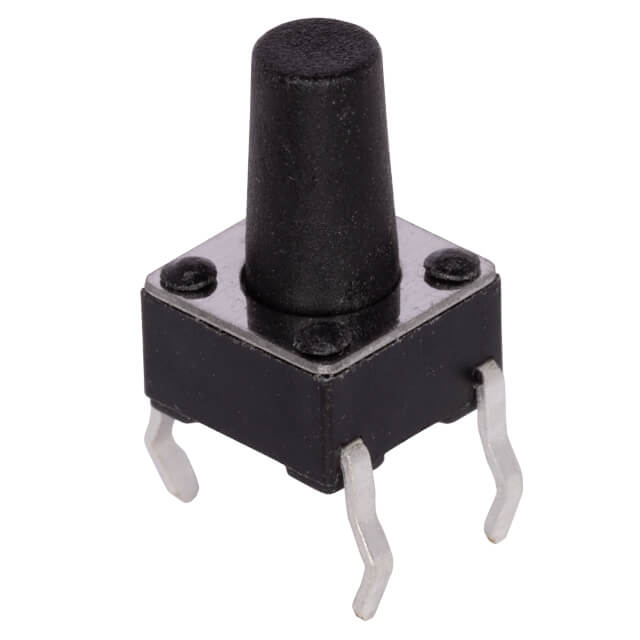

TS01-66 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Outline [x] | Outline [y] | Actuator Type | Illumination | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Termination Style | Mounting Type | Switch Function | Contact Rating @ Voltage | Switch Travel | Mechanical Life | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 6 mm | 6 mm | Plunger for Cap | Non-Illuminated | 100 gf | 80 °C | -30 ░C | SPST-NO | 7.3 mm | Top Actuated | PC Pin | Through Hole | Off-Mom | 0.05 A 12 VDC | |||
 Same Sky (Formerly CUI Devices) | 6 mm | 6 mm | Plunger for Cap | Non-Illuminated | 160 gf | 80 °C | -30 ░C | SPST-NO | 7.3 mm | Top Actuated | PC Pin | Through Hole | Off-Mom | 0.05 A 12 VDC | 0.25 mm | 80000 Cycles | Nylon 6/6 Polyamide (PA66) |
Same Sky (Formerly CUI Devices) | 6 mm | 6 mm | Plunger for Cap | Non-Illuminated | 160 gf | 80 °C | -30 ░C | SPST-NO | 7.3 mm | Top Actuated | PC Pin | Through Hole | Off-Mom | 0.05 A 12 VDC | |||
Same Sky (Formerly CUI Devices) | 6 mm | 6 mm | Plunger for Cap | Non-Illuminated | 100 gf | 80 °C | -30 ░C | SPST-NO | 7.3 mm | Top Actuated | PC Pin | Through Hole | Off-Mom | 0.05 A 12 VDC | 0.25 mm | 100000 Cycles | Nylon 6/6 Polyamide (PA66) |
 Same Sky (Formerly CUI Devices) | 6 mm | 6 mm | Plunger for Cap | Non-Illuminated | 260 gf | 80 °C | -30 ░C | SPST-NO | 7.3 mm | Top Actuated | PC Pin | Through Hole | Off-Mom | 0.05 A 12 VDC | 0.25 mm | 60000 Cycles | Nylon 6/6 Polyamide (PA66) |
Same Sky (Formerly CUI Devices) | 6 mm | 6 mm | Plunger for Cap | Non-Illuminated | 260 gf | 80 °C | -30 ░C | SPST-NO | 7.3 mm | Top Actuated | PC Pin | Through Hole | Off-Mom | 0.05 A 12 VDC |
