d2mc Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

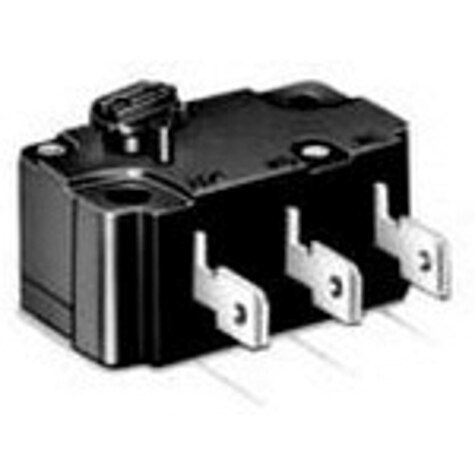

MICROSWITCH SNAP ACTION; 5A/250VAC; WITHOUT LEVER; SPDT; ON-(ON)
| Part | Differential Travel | Ingress Protection | Current Rating (Amps) | Switch Function | Pretravel | Mounting Type | Circuit | Voltage Rating - AC | Operating Force | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Overtravel | Electrical Life | Actuator Type | Release Force | Mechanical Life | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 3 ° | IP40 | 5 A | On-Mom | 21 ° | Chassis Mount | SPDT | 125 V | 0.102 gfm | Quick Connect - 0.205" (5.2mm) | -25 °C | 80 °C | 17 ° | 100000 Cycles | Without | 0.013 gfm | 10000000 Cycles | |
 Omron Electronics Inc-EMC Div | 3 ° | IP40 | 500 mA | On-Mom | 21 ° | Chassis Mount | SPDT | 125 V | 0.102 gfm | Quick Connect - 0.205" (5.2mm) | -25 °C | 80 °C | 17 ° | 100000 Cycles | Without | 0.013 gfm | 10000000 Cycles | 30 V |
