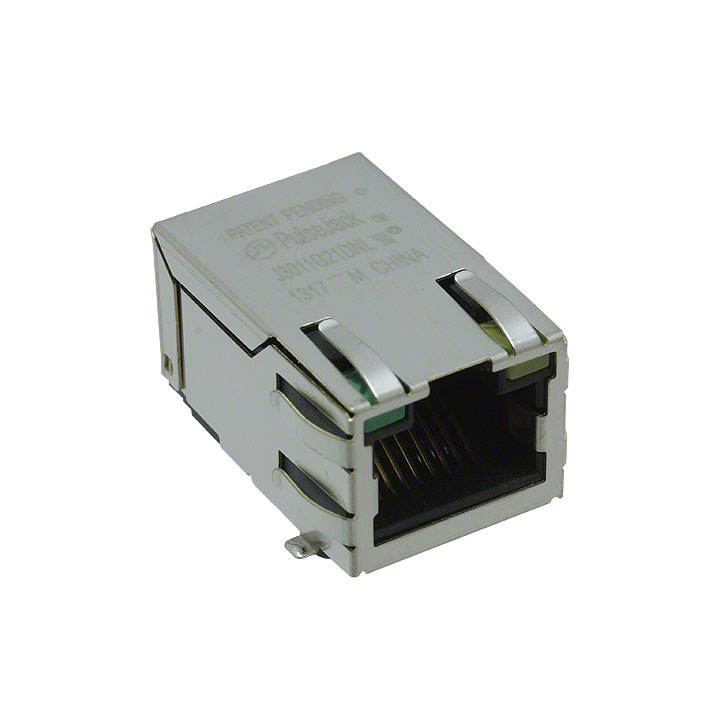

J3 Series
Manufacturer: Pulse Electronics
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS TAB UP 5-CORE SMT
| Part | Contact Material | Tab Direction | Connector Type | Number of Cores per Jack | Number of Ports | Orientation | LED Color | Termination | Applications | Features | Shielding | Contact Finish | Mounting Type | Number of Rows | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Housing Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Phosphor Bronze | Up | RJ45 | 5 | 1 | 90 ° | Green - Yellow | Solder | 10 Base-TX 100 Base-TX | Board Guide | Shielded | Gold | Surface Mount | 1 | 0.536 in | 13.61 mm | 70 °C | 0 °C | ||||
 Pulse Electronics | Phosphor Bronze | Up | RJ45 | 1 | 90 ° | Green - Yellow | Solder | 10/100 Base-TX AutoMDIX | Board Guide | Shielded | Gold | Surface Mount | 1 | 0.536 in | 13.61 mm | 70 °C | 0 °C | Brass | Thermoplastic | 0.38 µm | 15 µin |
