100A Series

Catalog

SILICON RF CAPACITORS / THIN FILM 150VOLTS 24PF 5%

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Temperature Coefficient	Voltage - Rated	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Package / Case	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Features	Quantity	Kit Type	Capacitance Range [Min]	Capacitance Range [Max]	Packages Included

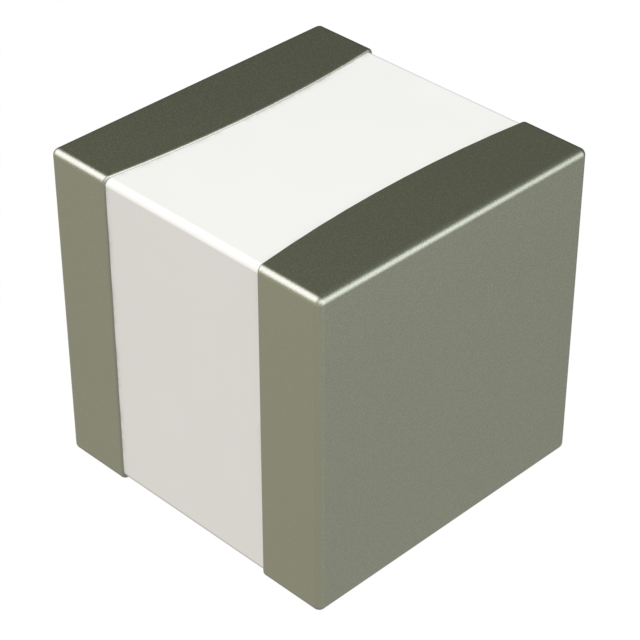

KYOCERA AVX 100A240JT150XT	-55 C	125 °C	Bypass Decoupling High Frequency Microwave RF	P90	150 V	MLCC Surface Mount	1.45 mm	0.057 "	1313	0505	24 pF	0.055 "	1.4 mm	0.055 in	1.4 mm	5 %	High Q Low ESL Low Loss
KYOCERA AVX 100A101JCA150XT	-55 C	125 °C	Bypass Decoupling High Frequency Microwave RF	P90	150 V	MLCC Surface Mount	1.45 mm	0.057 "	1313	0505	100 pF	0.055 "	1.4 mm	0.055 in	1.4 mm	5 %	High Q Low ESL Low Loss
KYOCERA AVX 100A680FW150XT1K	-55 C	125 °C	Bypass Decoupling High Frequency Microwave RF	P90	150 V	MLCC Surface Mount	1.45 mm	0.057 "	1313	0505	68 pF	0.055 "	1.4 mm	0.055 in	1.4 mm	1 %	High Q Low ESL Low Loss
KYOCERA AVX 100A3R6BW150XT1K	-55 C	125 °C	Bypass Decoupling High Frequency Microwave RF	P90	150 V	MLCC Surface Mount	1.45 mm	0.057 "	1313	0505	3.6 pF	0.055 "	1.4 mm	0.055 in	1.4 mm	0.1 pF	High Q Low ESL Low Loss

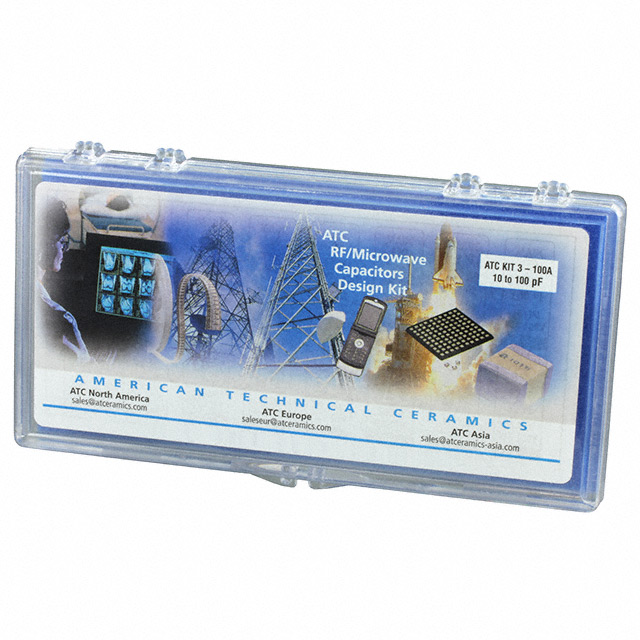

KYOCERA AVX DK0003T						MLCC Surface Mount										5 %		240 Pieces	Ceramic	10 pF	100 pF	MLCC Surface Mount
KYOCERA AVX 100A3R0BT150XT1K	-55 C	125 °C	Bypass Decoupling High Frequency Microwave RF	P90	150 V	MLCC Surface Mount	1.45 mm	0.057 "	1313	0505	3 pF	0.055 "	1.4 mm	0.055 in	1.4 mm	0.1 pF	High Q Low ESL Low Loss
KYOCERA AVX 100A101KW150XT	-55 C	125 °C	High Frequency Microwave RF	P90	150 V						100 pF					10 %	High Q Low Loss
KYOCERA AVX 100A120JW150XT1K	-55 C	125 °C	Bypass Decoupling High Frequency Microwave RF	P90	150 V	MLCC Surface Mount	1.45 mm	0.057 "	1313	0505	12 pF	0.055 "	1.4 mm	0.055 in	1.4 mm	5 %	High Q Low ESL Low Loss
KYOCERA AVX 100A1R0CT150XT	-55 C	125 °C	Bypass Decoupling High Frequency Microwave RF	P90	150 V	MLCC Surface Mount	1.45 mm	0.057 "	1313	0505	1 pF	0.055 "	1.4 mm	0.055 in	1.4 mm	0.25 pF	High Q Low ESL Low Loss
KYOCERA AVX 100A2R2CT150XT1K	-55 C	125 °C	Bypass Decoupling High Frequency Microwave RF	P90	150 V	MLCC Surface Mount	1.45 mm	0.057 "	1313	0505	2.2 pF	0.055 "	1.4 mm	0.055 in	1.4 mm	0.25 pF	High Q Low ESL Low Loss
