IHD Series

Catalog

POWER INDUCTORS - LEADED IHD-1 47 15% R16

Part	Current - Saturation (Isat)	Material - Core	Package / Case	Inductance Frequency - Test	Current Rating	Shielding	Tolerance	DC Resistance (DCR) (Max)	Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Diameter	Inductance
Vishay Dale IHD1RR470L	1.1 A	Ferrite	Axial	1 kHz	1.6 A	Unshielded	15 %	104 mOhm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.7 in	0.27 in	47 µH
Vishay Dale IHD1BH183L	0.06 mA	Ferrite	Axial	1 kHz	0.08 A	Unshielded	15 %	40 Ohm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.7 in	0.27 in	18 mH
Vishay Dale IHD3BH471L	0.8 mA	Ferrite	Axial	1 kHz	1.2 A	Unshielded	15 %	393 mOhm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.9 in	0.46 in	0.47 mH

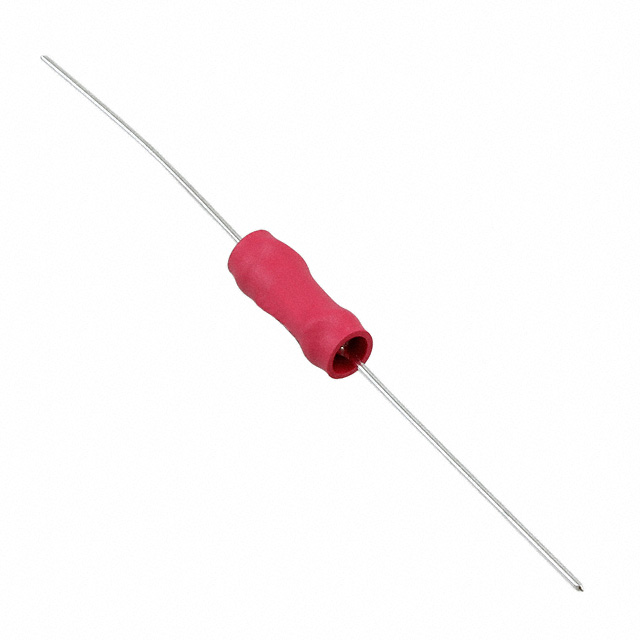

Vishay Dale IHD1EB821L	0.26 mA	Ferrite	Axial	1 kHz	360 mA	Unshielded	15 %	1.98 Ohm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.7 in	0.27 in	0.82 mH
Vishay Dale IHD3EB101L	1.7 A	Ferrite	Axial	1 kHz	1.6 A	Unshielded	15 %	84 mOhm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.9 in	0.46 in	100 µH
Vishay Dale IHD3AC8R2L	5.7 A	Ferrite	Axial	1 kHz	4 A	Unshielded	15 %	13 mOhm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.9 in	0.46 in	8.2 µH
Vishay Dale IHD1ER270L	1.4 A	Ferrite	Axial	1 kHz	1.9 A	Unshielded	15 %	70 mOhm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.7 in	0.27 in	27 µH
Vishay Dale IHD1ER2R2L	4.7 A	Ferrite	Axial	1 kHz	4.4 A	Unshielded	15 %	13 mOhm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.7 in	0.27 in	2.2 µH

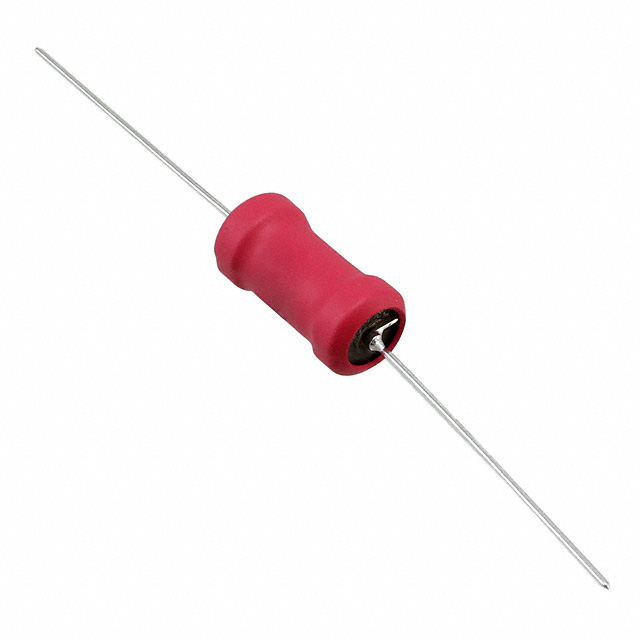

Vishay Dale IHD3EB823L	0.07 mA	Ferrite	Axial	1 kHz	70 mA	Unshielded	15 %	67.3 Ohm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.9 in	0.46 in	82 mH
Vishay Dale IHD3BH331L	0.95 mA	Ferrite	Axial	1 kHz	1.6 A	Unshielded	15 %	257 mOhm	Drum Core Wirewound	Through Hole	125 °C	-55 °C	0.9 in	0.46 in	330 µH
