170729 Series

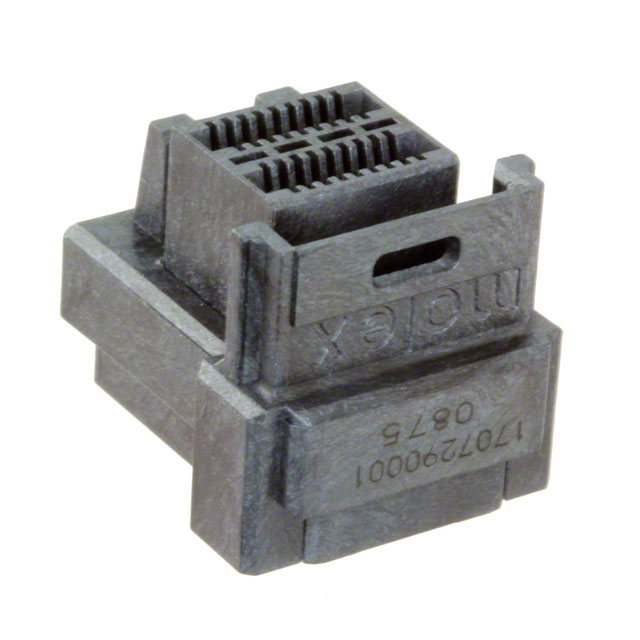

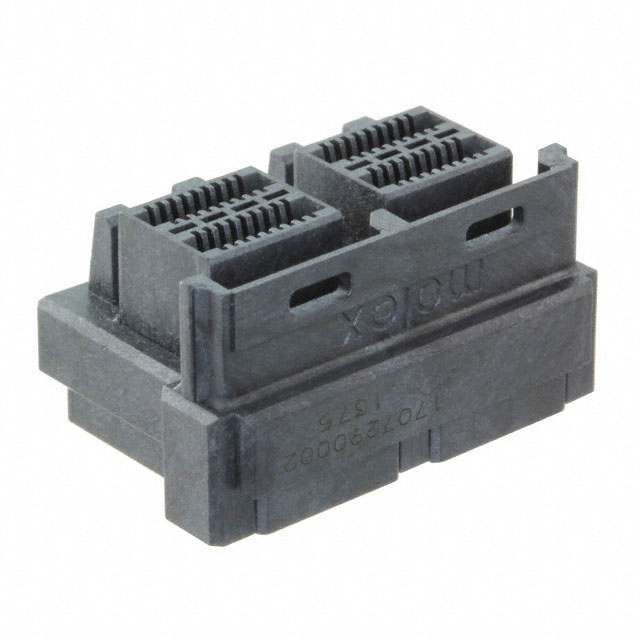

iPass+ zHD Vertical Single Piece Housing Assembly, Through Hole, 0.76µm Gold (Au) Plating
Manufacturer: Molex
Catalog
iPass+ zHD Vertical Single Piece Housing Assembly, Through Hole, 0.76µm Gold (Au) Plating
Beta
⌘K
iPass+ zHD Vertical Single Piece Housing Assembly, Through Hole, 0.76µm Gold (Au) Plating
iPass+ zHD Vertical Single Piece Housing Assembly, Through Hole, 0.76µm Gold (Au) Plating
iPass+ zHD Vertical Single Piece Housing Assembly, Through Hole, 0.76µm Gold (Au) Plating
| Part | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Mounting Type | Connector Style | Termination | Contact Finish | Number of Positions | Number of Positions [y] | Number of Positions [x] |
|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 30 Áin | 0.76 Ám | Multi-Purpose | Surface Mount | Receptacle | Solder | Gold | 72 | ||
 Molex | 30 Áin | 0.76 Ám | Through Hole | Receptacle | Press-Fit | Gold | 36 | |||
 Molex | 30 Áin | 0.76 Ám | Through Hole | Receptacle (1x2) | Press-Fit | Gold | 72 | |||
 Molex | 30 Áin | 0.76 Ám | Through Hole | Receptacle (1x4) | Press-Fit | Gold | 144 | 4 | 36 | |
 Molex | 30 Áin | 0.76 Ám | Through Hole | Receptacle | Press-Fit | Gold | 36 |
