887-019 Series
Manufacturer: EDAC Inc.
Beta
⌘K

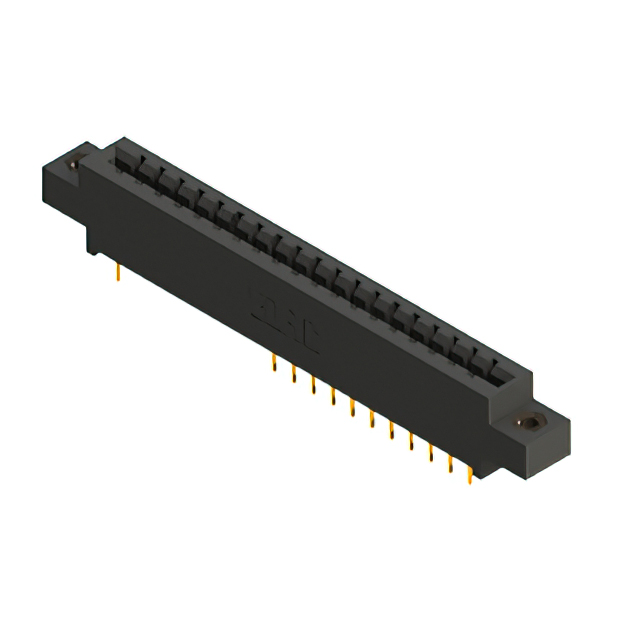

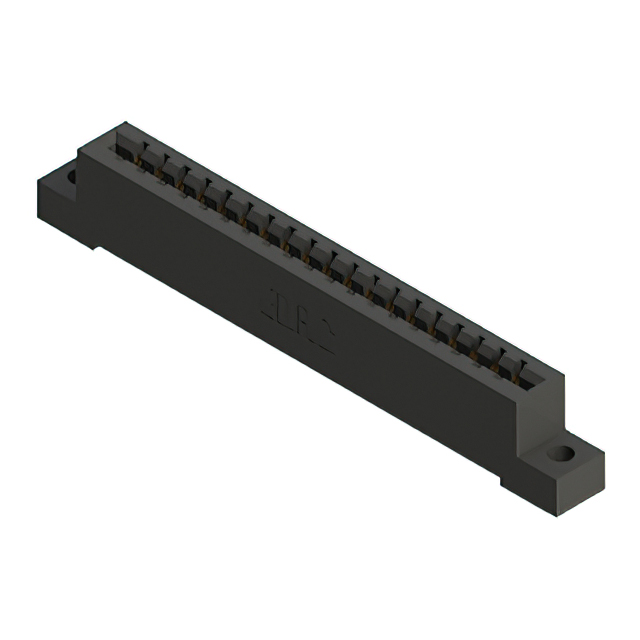

CONN EDGE SGL FMALE 19POS 0.156
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Termination | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Color | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Read Out | Pitch | Pitch | Card Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Solder | Through Hole | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Solder | Through Hole | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Wire Wrap | Through Hole | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Wire Wrap | Through Hole | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Solder | Through Hole | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Solder | Right Angle Through Hole | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Solder | Through Hole | M3 Threaded Insert Top Mount Opening | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Wire Wrap | Through Hole | 3.96 mm | 0.156 " | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Solder | Through Hole | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 19 | Solder | Right Angle Through Hole | M3 Threaded Insert Top Mount Opening | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Cantilever | 125 °C | -40 C | 19 | Single | 3.96 mm | 0.156 in | Non Specified - Single Edge | Female | 0.25 Ám | 10 Áin | Copper Alloy |
