1838893 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

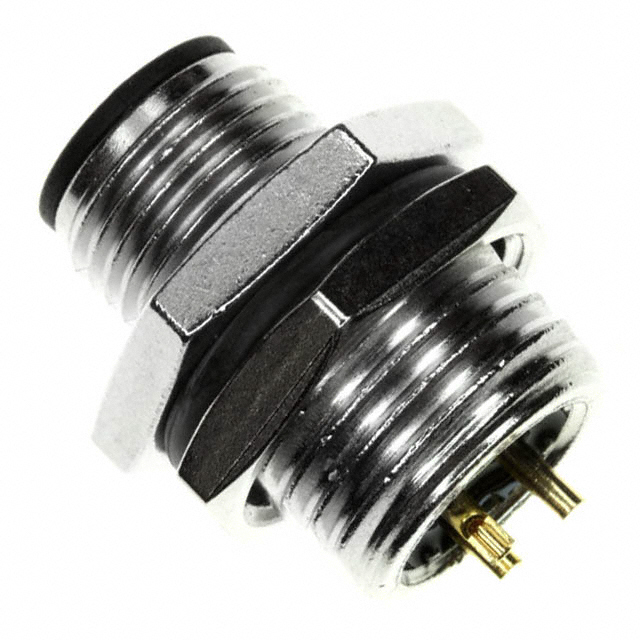

CONN PLUG MALE 8POS SOLDER CUP
| Part | Orientation | Shell Material | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Voltage Rating | Primary Material | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Finish - Mating | Shell Size - Insert | Number of Positions | Shell Finish | Current Rating (Amps) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Keyed | Zinc Die Cast | Bulkhead - Rear Side Nut | 90 °C | -25 °C | IP67 - Dust Tight Waterproof | 30 VAC | Metal | Automotive Industrial | 0.15 µm | 5.9 µin | Male Pins Plug | Gold | M12-8 | 8 | Nickel | 2 A | Silver |

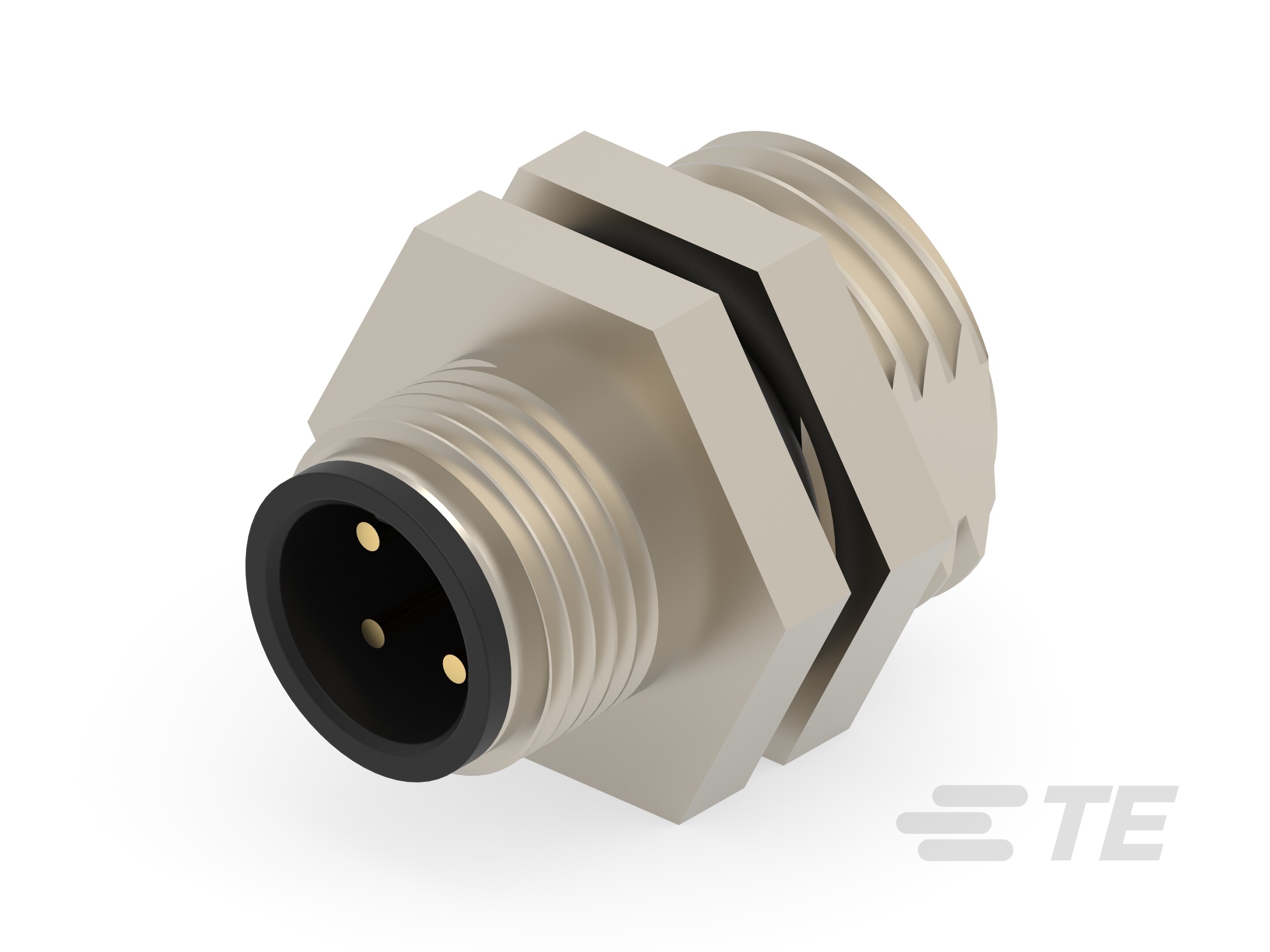

 TE Connectivity Raychem Cable Protection | Keyed | Zinc Die Cast | Bulkhead - Rear Side Nut | 90 °C | -25 °C | IP67 - Dust Tight Waterproof | 250 VAC | Metal | Automotive Industrial | 0.15 µm | 5.9 µin | Male Pins Plug | Gold | M12-3 | Nickel | 5 A | Silver | |
 TE Connectivity Raychem Cable Protection | Keyed | Zinc Die Cast | Bulkhead - Rear Side Nut | 90 °C | -25 °C | IP67 - Dust Tight Waterproof | 250 VAC | Metal | Automotive Industrial | 0.15 µm | 5.9 µin | Male Pins Plug | Gold | M12-4 | 4 | Nickel | 5 A | Silver |
