QTLP65 Series

Catalog

LED RED/YLW CLEAR 1210 SMD

Part	Voltage - Forward (Vf) (Typ)	Configuration	Lens Transparency	Package / Case	Package / Case	Lens Size [y]	Lens Size [x]	Wavelength - Peak [custom]	Color	Current - Test	Supplier Device Package	Millicandela Rating	Viewing Angle	Wavelength - Dominant	Height (Max) [Max] [z]	Lens Color	Lens Style	Mounting Type	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Size [diameter]	Height (Max) [Max]
ON Semiconductor QTLP650C23TR	2 V 2 V	Independent	Clear	1210	3225 Metric	2 mm	2.7 mm	585 nm 635 nm	Red Yellow	20mA Red 20mA Yellow	1210	4 mcd 6.5 mcd	140 °	590 nm 630 nm	1.1 mm	Colorless	Rectangle with Flat Top	Surface Mount
ON Semiconductor QTLP650CETR	2 V	Standard	Clear	1206 (3216 Metric)		1.6 mm	2 mm				1206	70 mcd	140 °	615 nm	1.3 mm	Colorless	Rectangle with Flat Top	Surface Mount	20 mA	1.6 mm	3.2 mm	620 nm
ON Semiconductor QTLP650C74TR		Independent	Clear	1210	3225 Metric	2 mm	2.7 mm		Green Red		1210	6.5 mcd 15 mcd	140 °		1.3 mm	Colorless	Rectangle with Flat Top	Surface Mount	20 mA 20 mA			565 nm 660 nm	645 nm	570 nm	1.9 V	2 V
ON Semiconductor QTLP651C2TR	2 V	Standard	Clear	1206 (3016 Metric)					Red		1206	15 mcd	20 °	630 nm		Colorless		Surface Mount	10 mA	1.5 mm	3 mm	635 nm					1.1 mm	1.5 mm
ON Semiconductor QTLP650CRTR	2 V	Standard	Clear	1206 (3216 Metric)		1.6 mm	2 mm		Red		1206	70 mcd	140 °	624 nm	1.3 mm	Colorless	Rectangle with Flat Top	Surface Mount	20 mA	1.6 mm	3.2 mm	630 nm

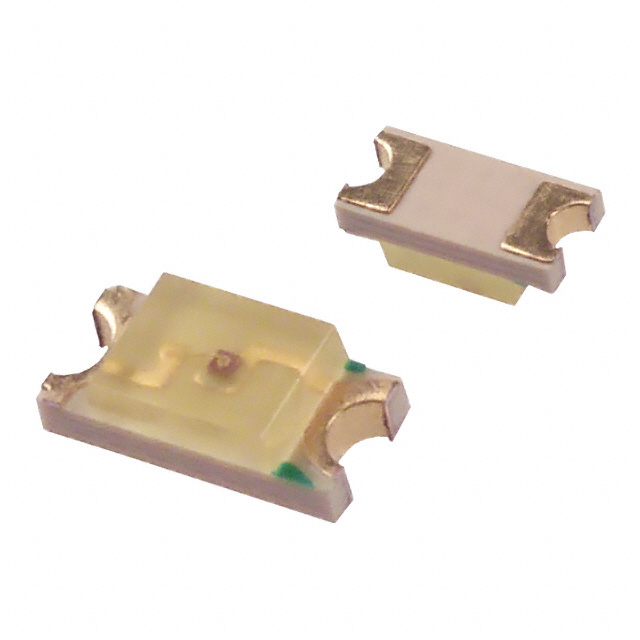

ON Semiconductor QTLP650D3TR	2 V	Standard	Diffused	1206 (3216 Metric)		1.6 mm	2 mm		Yellow		1206	8 mcd	160 °	590 nm	1.3 mm	Yellow	Rectangle with Flat Top	Surface Mount	20 mA	1.6 mm	3.2 mm	585 nm
ON Semiconductor QTLP650C3TR	2 V	Standard	Clear	1206 (3216 Metric)		1.6 mm	2 mm		Yellow		1206	10 mcd	140 °	590 nm	1.3 mm	Colorless	Rectangle with Flat Top	Surface Mount	20 mA	1.6 mm	3.2 mm	585 nm
ON Semiconductor QTLP650D4TR	2.1 V	Standard	Diffused	1206 (3216 Metric)		1.6 mm	2 mm		Green		1206	8 mcd	160 °	570 nm	1.3 mm	Green	Rectangle with Flat Top	Surface Mount	20 mA	1.6 mm	3.2 mm	565 nm
ON Semiconductor QTLP651CRTR	2 V	Standard	Clear	1206 (3016 Metric)					Red		1206	70 mcd	20 °	624 nm		Colorless		Surface Mount	20 mA	1.5 mm	3 mm	630 nm					1.1 mm	1.5 mm
ON Semiconductor QTLP651C7TR	1.9 V	Standard	Clear	1206 (3016 Metric)					Red		1206	50 mcd	20 °	645 nm		Colorless		Surface Mount	10 mA	1.5 mm	3 mm	660 nm					1.1 mm	1.5 mm
