TS2C5F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

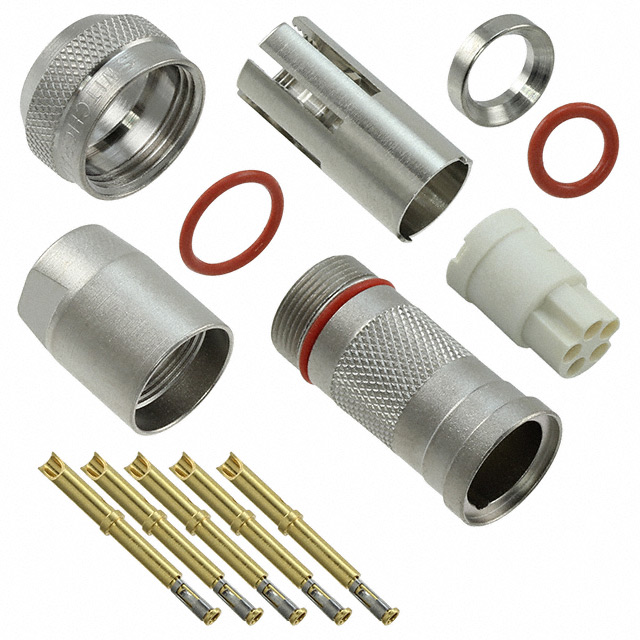

CONN PLUG FMALE 5POS GOLD CRIMP
| Part | Primary Material | Shell Finish | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Shielding | Orientation | Termination | Insert Material | Ingress Protection | Backshell Material, Plating | Connector Type | Applications | Color | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Shell Material | Voltage Rating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Metal | Electroless Nickel | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | Shielded | Keyed | Crimp Solder Cup | Liquid Crystal Polymer (LCP) | IP66 IP67 IP68 | Copper Alloy Nickel | Female Sockets Plug | Agriculture Audio General Medical Testing Equipment & Measurement | Silver | Gold | 135 °C | -40 °C | Free Hanging (In-Line) | Backshell Coupling Nut | Copper Alloy | 125 VAC | Copper Alloy |
