09100123 Series

Manufacturer: HARTING

Catalog

1A 12PIN MALE CRIMP INSERT FOR L

Part	Color	Material Flammability Rating	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Size	Termination Style	Gender	Voltage Rating	Number of Positions	Connector Type	Current Rating (Amps)

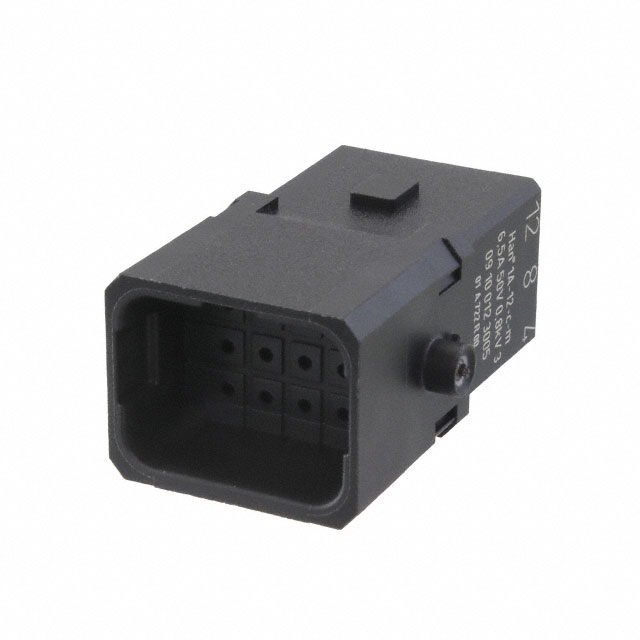

HARTING 09100123005	Black	UL94 V-0	Polyamide (PA) Nylon	-30 ░C	90 °C	1A	Crimp	Male	50 V	12	Insert	6.5 A

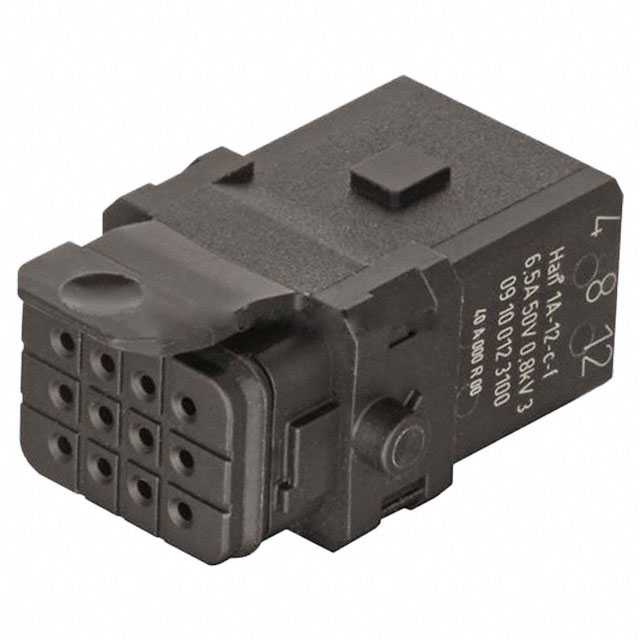

HARTING 09100123100	Black	UL94 V-0	Polyamide (PA) Nylon	-30 ░C	90 °C	1A	Crimp	Female	50 V	12	Insert	6.5 A

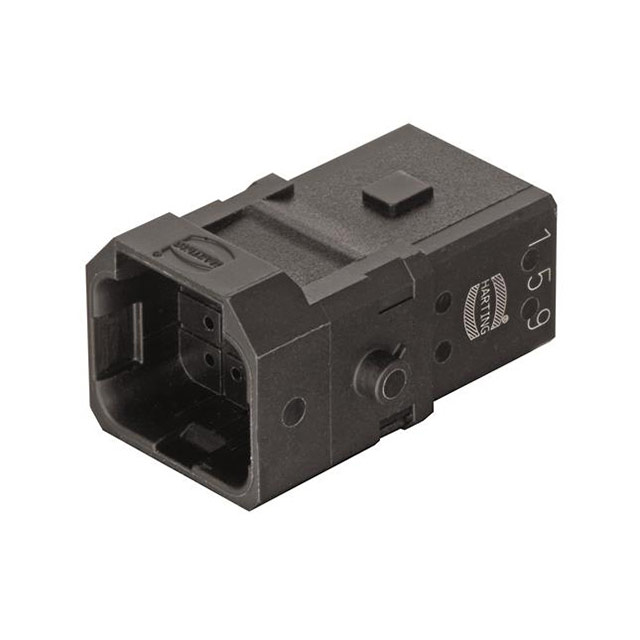

HARTING 09100123000	Black	UL94 V-0	Polyamide (PA) Nylon	-30 ░C	90 °C	1A	Crimp	Male	50 V	12	Insert	6.5 A
HARTING 09100123006	Black	UL94 V-0	Polyamide (PA) Nylon	-30 ░C	90 °C	1A	Crimp	Male	50 V	12	Insert without Contacts	6.5 A

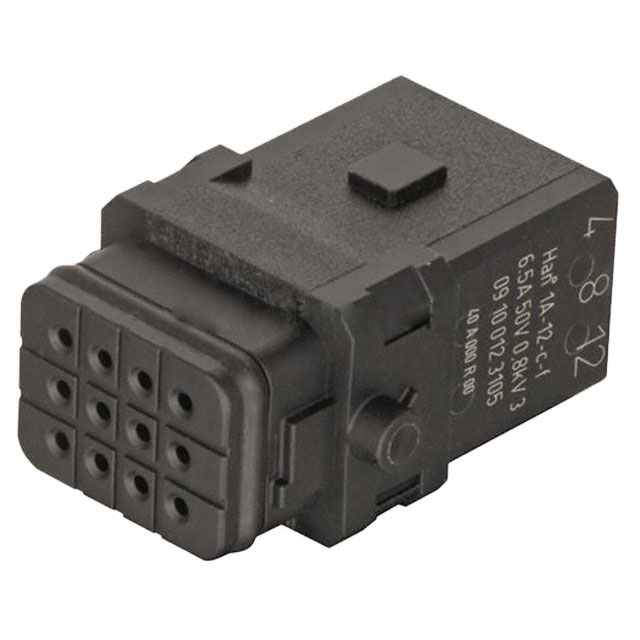

HARTING 09100123105	Black	UL94 V-0	Polyamide (PA) Nylon	-30 ░C	90 °C	1A	Crimp	Female	50 V	12	Insert	6.5 A

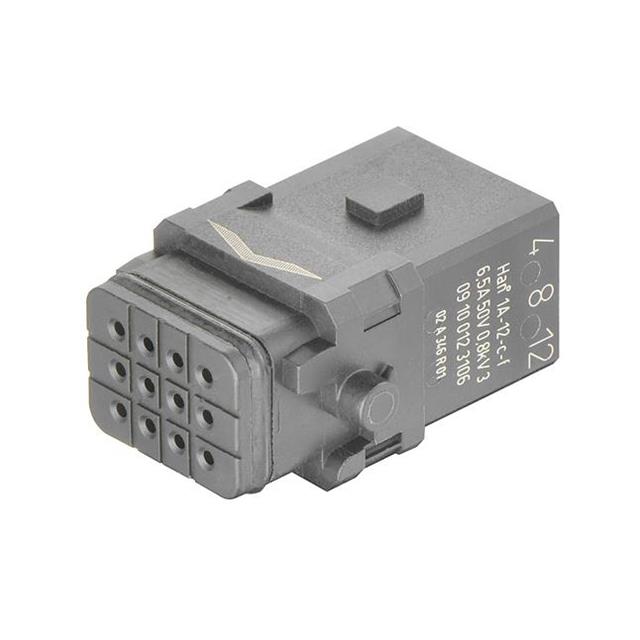

HARTING 09100123106	Black	UL94 V-0	Polyamide (PA) Nylon	-30 ░C	90 °C	1A	Crimp	Female	50 V	12	Insert without Contacts	6.5 A
HARTING 09100123001	Black	UL94 V-0	Polyamide (PA) Nylon	-30 ░C	90 °C	1A	Crimp	Male	50 V	12	Insert without Contacts	6.5 A
