73066 Series

Catalog

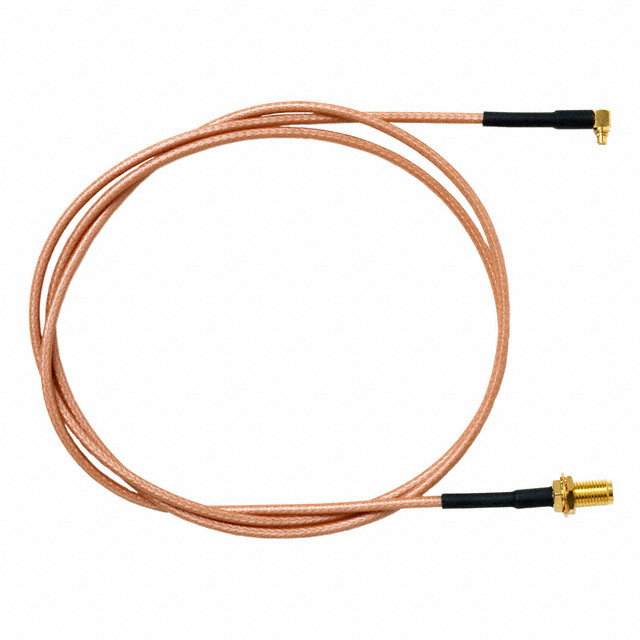

CBL ASSY SMA-MMCX JACK-PLUG 36"

Part	Length	Length	1st Connector	Frequency - Max [Max]	Features	2nd Contact Gender	1st Contact Gender	Cable Type	2nd Connector	1st Connector Mounting Type	Style	Cable Impedance	2nd Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Overall Impedance	1st Connector Mounting Feature	Length [x]	Length [x]	Length
Pomona Electronics 73066-BB-36	91.44 cm	36 in	SMA Jack	3 GHz	Shielded	Male	Female	RG-316	MMCX Plug Right Angle	Panel Mount	SMA to MMCX	50 Ohms	Free Hanging (In-Line)	155 C	-55 C	Copper	50 Ohms	Bulkhead - Front Side Nut
Pomona Electronics 73066-BB-12			SMA Jack	3 GHz	Shielded	Male	Female	RG-316	MMCX Plug Right Angle	Panel Mount	SMA to MMCX	50 Ohms	Free Hanging (In-Line)	155 C	-55 C	Copper	50 Ohms	Bulkhead - Front Side Nut	304.8 mm	12 in
Pomona Electronics 73066-BB-48	1200 mm	48 in	SMA Jack	3 GHz	Shielded	Male	Female	RG-316	MMCX Plug Right Angle	Panel Mount	SMA to MMCX	50 Ohms	Free Hanging (In-Line)	155 C	-55 C	Copper	50 Ohms	Bulkhead - Front Side Nut			4 ft
