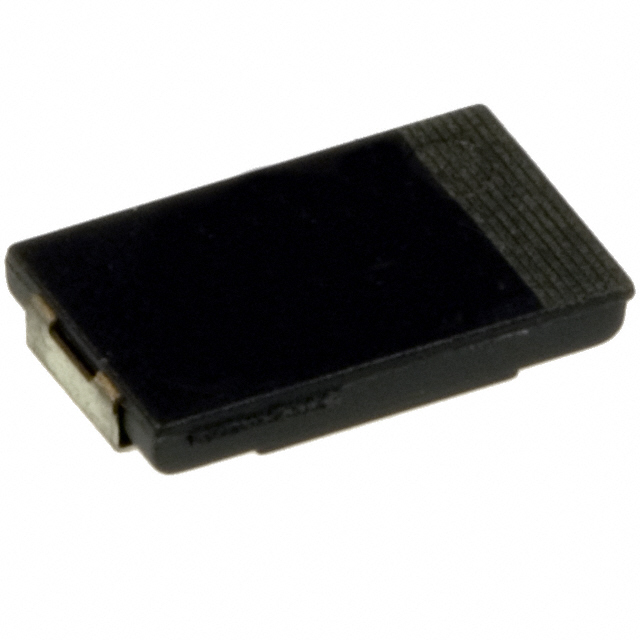

EEF-FD Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM POLY 56UF 20% 2.5V SMD

Part	Tolerance	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Applications	Mounting Type	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Voltage - Rated [custom]
Panasonic Industrial Automation Sales EEF-FD0E560R	20 %	1000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	2.5 V	7343 Metric	2917	1.2 mm	0.047 in	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	General Purpose	Surface Mount	28 mOhm	2 A	-40 °C	105 ░C	56 µF
Panasonic Industrial Automation Sales EEF-FD0D680CR	20 %	1000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	2 VDC	7343 Metric	2917	1.2 mm	0.047 in	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	General Purpose	Surface Mount			-40 °C	105 ░C	68 µF
Panasonic Industrial Automation Sales EEF-FD0D680R	20 %	1000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	2 VDC	7343 Metric	2917	1.2 mm	0.047 in	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	General Purpose	Surface Mount	28 mOhm	2 A	-40 °C	105 ░C	68 µF
Panasonic Industrial Automation Sales EEF-FD0K220R	20 %	1000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "		7343 Metric	2917	1.2 mm	0.047 in	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	General Purpose	Surface Mount	28 mOhm	2 A	-40 °C	105 ░C	22 µF	8 V
Panasonic Industrial Automation Sales EEF-FD0J330R	20 %	1000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	6.3 V	7343 Metric	2917	1.2 mm	0.047 in	Polymer	0.287 "	4.3 mm	0.169 "	7.3 mm	General Purpose	Surface Mount	28 mOhm	2 A	-40 °C	105 ░C	33 ÁF
