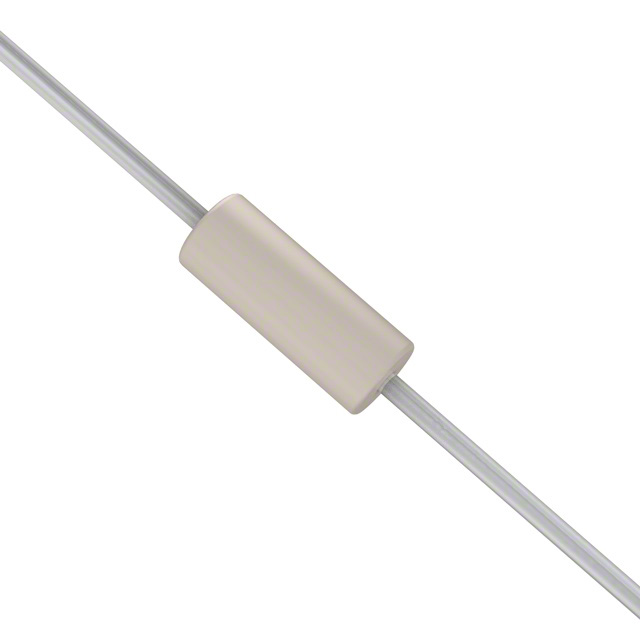

0819 Series

Manufacturer: Delevan

Catalog

RF INDUCTORS - LEADED 1000UH 10% 79OHM MOLDED UNSHIELD COIL

Part	Inductance	Shielding	Package / Case	Tolerance	DC Resistance (DCR) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Type	Mounting Type	Inductance Frequency - Test	Current Rating (Amps)	Q @ Freq	Size / Dimension [diameter]	Size / Dimension [x]	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]
Delevan 0819-96K	1 mH	Unshielded	Axial	10 %	79 Ohm	-55 C	105 ░C	Ferrite	Molded	Through Hole	790 kHz	24.5 mA	35 790 kHz	0.078 in 1.98 mm	5.08 mm	3.3 MHz
Delevan 0819-36K	3.3 µH	Unshielded	Axial	10 %	1.2 Ohm	-55 C	105 ░C	Iron	Molded	Through Hole	7.9 MHz	198 mA		0.078 in 1.98 mm	5.08 mm	100 MHz	45	7.9 MHz
Delevan 0819-64K	47 µH	Unshielded	Axial	10 %	8.2 Ohm	-55 C	105 ░C	Ferrite	Molded	Through Hole	2.5 MHz	0.076 A	2.5 MHz 45	0.078 in 1.98 mm	5.08 mm	12.5 MHz
Delevan 0819-04J	150 nH	Unshielded	Axial	5 %	180 mOhm	-55 C	125 °C	Phenolic	Molded	Through Hole	25 MHz	760 mA	25 MHz 35	0.078 in 1.98 mm	5.08 mm	560 MHz
Delevan 0819-24K	1 µH	Unshielded	Axial	10 %	250 mOhm	-55 C	105 ░C	Iron	Molded	Through Hole	25 MHz	435 mA		0.078 in 1.98 mm	5.08 mm	190 MHz	40	25 MHz
Delevan 0819-52K	15 µH	Unshielded	Axial	10 %	3.4 Ohm	-55 C	105 ░C	Ferrite	Molded	Through Hole	2.5 MHz	118 mA		0.078 in 1.98 mm	5.08 mm	26 MHz	40	2.5 MHz
Delevan 0819-06J	180 nH	Unshielded	Axial	5 %	210 mOhm	-55 C	125 °C	Phenolic	Molded	Through Hole	25 MHz	705 mA	25 MHz 35	0.078 in 1.98 mm	5.08 mm	540 MHz
Delevan 0819-76J	150 µH	Unshielded	Axial	5 %	18 Ohm	-55 C	105 ░C	Ferrite	Molded	Through Hole	790 kHz	51 mA	35 790 kHz	0.078 in 1.98 mm	5.08 mm	7.9 MHz
Delevan 0819-22H	820 nH	Unshielded	Axial	3 %	220 mOhm	-55 C	105 ░C	Iron	Molded	Through Hole	25 MHz	465 mA		0.078 in 1.98 mm	5.08 mm	200 MHz	40	25 MHz
