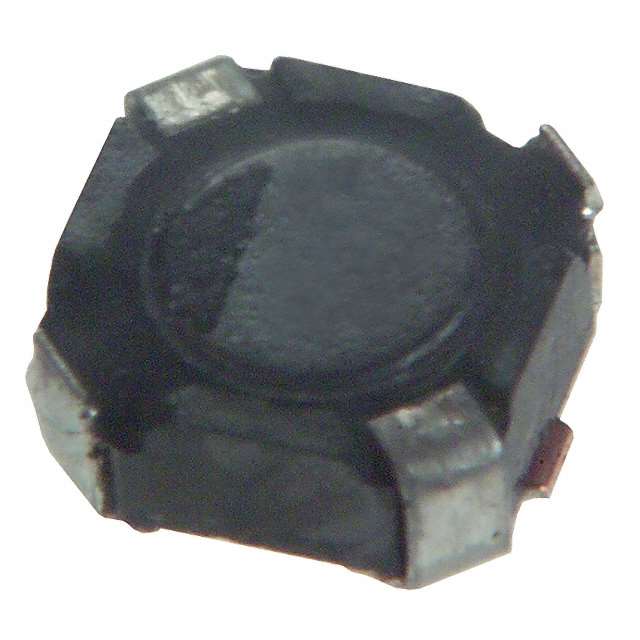

ELL-3GM Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
FIXED IND 10UH 550MA 350MOHM SMD
| Part | Type | Tolerance | Inductance Frequency - Test | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) | Package / Case | Shielding | Inductance | DC Resistance (DCR) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Wirewound | 20 % | 100 kHz | 0.55 A | 3.2 mm | 0.126 " | 3.2 mm | 0.126 in | 0.059 " | 1.5 mm | Nonstandard | Shielded | 10 µH | 350 mOhm | Surface Mount |
