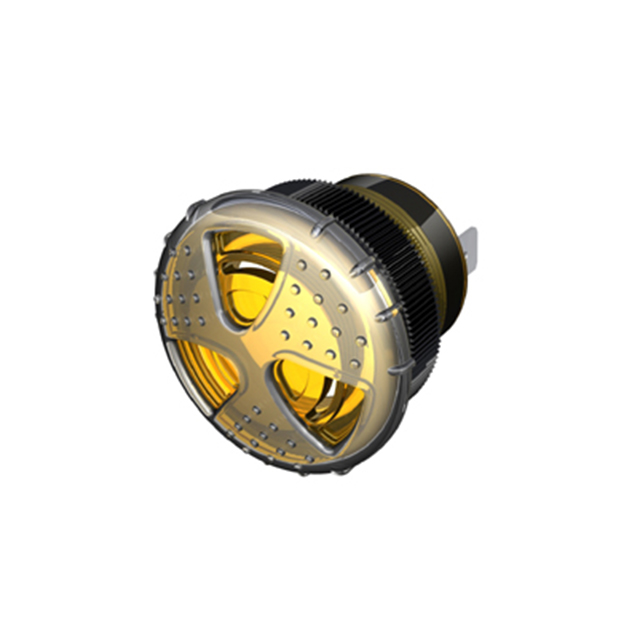

TUHW-V88Y Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 35.8MM PNL MNT
| Part | Operating Mode | Voltage Range [Max] | Voltage Range [Min] | Input Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Port Location | Driver Circuitry | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ingress Protection | Approval Agency | Sound Pressure Level (SPL) | Frequency | Termination | Termination | Termination | Mounting Type | Current - Supply [Max] | Current - Supply [Min] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Slow Warble | 30 V | 9 V | DC | 35.8 mm | 1.409 in | Top | Indicator Internally Driven | 1.25 " | 31.75 mm | IP68 - Dust Tight Waterproof | UL UR | 103 dB | 3 kHz | Quick Connect Tab | 0.25 " | 6.35 mm | Panel Mount | 125 mA | 65 mA | |
 Floyd Bell Inc | Warble Fast | 30 V | 9 V | DC | 35.81 mm | Top | Indicator Internally Driven | 1.25 " | 31.75 mm | IP68 - Dust Tight Waterproof | UL UR | 103 dB | 3 kHz | Quick Connect Tab | 0.25 " | 6.35 mm | Panel Mount | 125 mA | 65 mA | 1.41 in |
