M83513-10-33 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

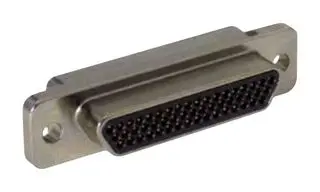

D-SUB MIL SPEC CONNECTORS MICRO D METAL SHELL - 0.050 INCH SPACING CONNECTOR, PLUG, CONDENSED BOARD STRAIGHT (CBS), SIZES 9 - 37, 37 CONTACT
| Part | Shell Size, Connector Layout [y] | Shell Size, Connector Layout [x] | Flange Feature | Contact Finish | Connector Type | Shell Material, Finish | Termination | Number of Positions | Mounting Type | Current Rating (Amps) | Connector Style | Primary Material | Contact Type | Number of Rows [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | 0.043 in | 0.05 in | Housing/Shell (2-56) | Gold | Receptacle Female Sockets | Aluminum Electroless Nickel Plated | Solder | 37 | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 2 | |
 ITT Cannon, LLC | 0.043 in | 0.05 in | Mating Side Female Screwlock (2-56) | Gold | Plug Male Pins | Aluminum Electroless Nickel Plated | Solder | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 2 | 31 | |
ITT Cannon, LLC | 0.043 in | 0.05 in | Mating Side Female Screwlock (2-56) | Gold | Receptacle Female Sockets | Aluminum Electroless Nickel Plated | Solder | 9 | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 2 | |
ITT Cannon, LLC | 0.043 in | 0.05 in | Housing/Shell (2-56) | Gold | Plug Male Pins | Aluminum Electroless Nickel Plated | Solder | 25 | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 2 | |
ITT Cannon, LLC | 0.043 in | 0.05 in | Mating Side Female Screwlock (2-56) | Gold | Receptacle Female Sockets | Aluminum Electroless Nickel Plated | Solder | 21 | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 2 | |
ITT Cannon, LLC | 0.043 in | 0.05 in | Mating Side Female Screwlock (2-56) | Gold | Plug Male Pins | Aluminum Electroless Nickel Plated | Solder | 37 | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 2 | |
ITT Cannon, LLC | 0.043 in | 0.05 in | Housing/Shell (Unthreaded) | Gold | Plug Male Pins | Aluminum Electroless Nickel Plated | Solder | 15 | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 2 | |
ITT Cannon, LLC | 0.043 in | 0.05 in | Mating Side Female Screwlock (2-56) | Gold | Plug Male Pins | Aluminum Yellow Chromate Plated Cadmium | Solder | 51 | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 3 | |
 ITT Cannon, LLC | 0.043 in | 0.05 in | Mating Side Female Screwlock (2-56) | Gold | Receptacle Female Sockets | Aluminum Yellow Chromate Plated Cadmium | Solder | 15 | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 2 | |
ITT Cannon, LLC | 0.043 in | 0.05 in | Mating Side Female Screwlock (2-56) | Gold | Receptacle Female Sockets | Aluminum Electroless Nickel Plated | Solder | 51 | Panel Mount Through Hole | 3 A | D-Type Micro-D | Metal | Signal | 3 |
