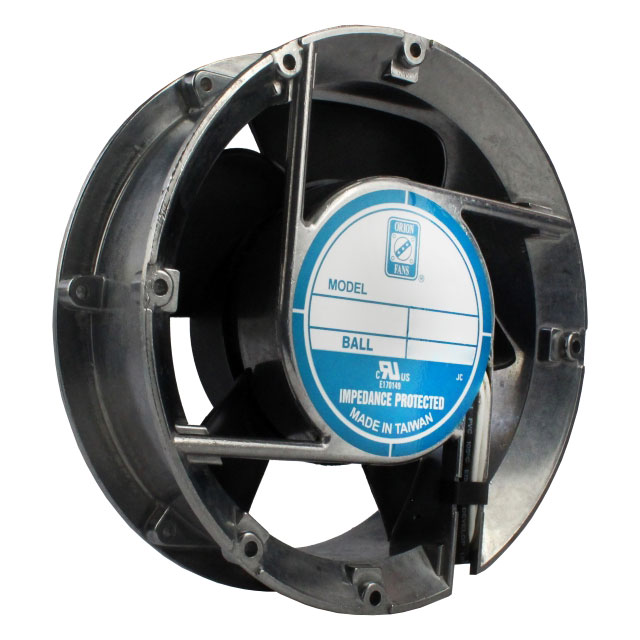

OA172AN Series

Catalog

AC AXIAL FAN, 170 CFM, 20 W, 2400 RPM, 115 VAC, 42 DB, 172 MM X 51 MM, CIRCULAR, TERMINALS

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Air Flow	Air Flow	Material - Frame	Static Pressure	Static Pressure	Noise	Voltage - Rated	Width [y]	Termination	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Bearing Type	Features	Weight	Weight	Power (Watts)	RPM	Size / Dimension [diameter]	Size / Dimension	Termination
ORION FANS OA172AN-11-2TB	40 °C 60000 Hrs	80 VAC	130 VAC	Polybutylene Terephthalate (PBT)	170 CFM	4.76 m³/min	Aluminum	0.49 in H2O	122.1 Pa	42 dB	115 VAC	50.8 mm	2	CE cURus TUV UR	-40 C	70 °C	70 °C	-40 °C	Tubeaxial	Ball	Capacitor	2.7 lbs	1.2 kg	20 W	2400 RPM	172 mm	Round
ORION FANS OA172AN-11-1WB	40 °C 60000 Hrs	80 VAC	130 VAC	Polybutylene Terephthalate (PBT)	235 CFM	6.58 m³/min	Aluminum	0.7 in H2O	174.4 Pa	52 dB	115 VAC	50.8 mm		CE cURus TUV UR	-40 C	70 °C	70 °C	-40 °C	Tubeaxial	Ball	Capacitor	2.7 lbs	1.2 kg	35 W	3200 RPM	172 mm	Round	2 Wire Leads
ORION FANS OA172AN-11-3TB	40 °C 60000 Hrs	80 VAC	130 VAC	Polybutylene Terephthalate (PBT)	135 CFM	3.78 mł/min	Aluminum	0.43 in H2O	107.1 Pa	33 dB(A)	115 VAC	50.8 mm	2	CE cURus TUV UR	-40 C	70 °C	70 °C	-40 °C	Tubeaxial	Ball	Capacitor	2.7 lbs	1.2 kg	16 W	1800 RPM	172 mm	Round
ORION FANS OA172AN-11-1TB	40 °C 60000 Hrs	80 VAC	130 VAC	Polybutylene Terephthalate (PBT)	235 CFM	6.58 m³/min	Aluminum	0.7 in H2O	174.4 Pa	52 dB	115 VAC	50.8 mm	2	CE cURus TUV UR	-40 C	70 °C	70 °C	-40 °C	Tubeaxial	Ball	Capacitor	2.7 lbs	1.2 kg	35 W	3200 RPM	172 mm	Round
ORION FANS OA172AN-22-1TB	40 °C 60000 Hrs	160 VAC	260 VAC	Polybutylene Terephthalate (PBT)	235 CFM	6.58 m³/min	Aluminum	0.7 in H2O	174.4 Pa	52 dB	230 VAC	50.8 mm	2	CE cURus TUV UR	-40 C	70 °C	70 °C	-40 °C	Tubeaxial	Ball	Capacitor	2.7 lbs	1.2 kg	35 W	3200 RPM	172 mm	Round
