2250013 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

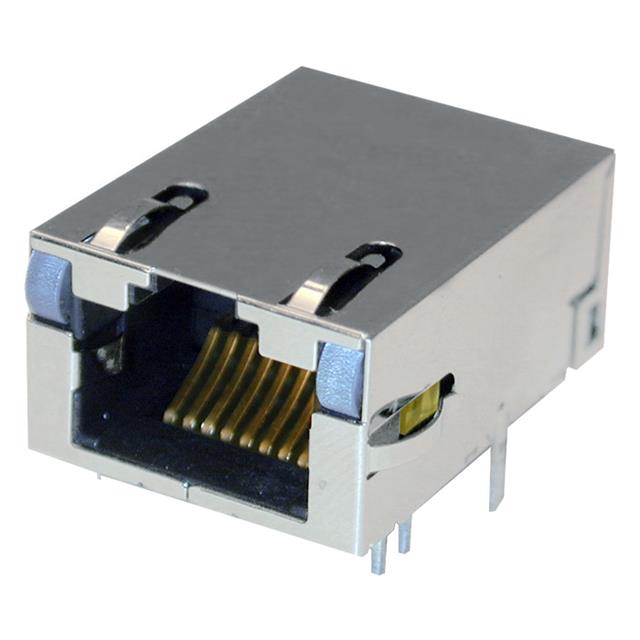

CONN JACK 1PORT 1000 BASE-T PCB
| Part | Features | Number of Ports | Tab Direction | Contact Finish | LED Color | Height Above Board | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Contact Material | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Applications | Number of Cores per Jack | Termination | Number of Rows | Shielding | Mounting Type | Shield Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Board Guide | 1 | Up | Gold | Green Orange Yellow | 13.7 mm | 0.539 in | 70 °C | 0 °C | 90 ° | Phosphor Bronze | Thermoplastic | 50 µin | 1.27 µm | 10/100/1000 Base-T AutoMDIX | 8 | Solder | 1 | EMI Finger Shielded | Through Hole | Brass | RJ45 |
 Bel Fuse Inc. | Board Guide | 1 | Up | Gold | Green Yellow - Green | 13.7 mm | 0.539 in | 70 °C | 0 °C | 90 ° | Phosphor Bronze | 10/100/1000 Base-T AutoMDIX | 8 | Solder | 1 | EMI Finger Shielded | Through Hole | RJ45 | ||||
Bel Fuse Inc. | Board Guide | 1 | Up | Gold | Green Orange Yellow | 13.7 mm | 0.539 in | 70 °C | 0 °C | 90 ° | Phosphor Bronze | 10/100/1000 Base-T AutoMDIX | 8 | Solder | 1 | EMI Finger Shielded | Through Hole | RJ45 | ||||
Bel Fuse Inc. | Board Guide | 1 | Up | Gold | Green Yellow - Green | 13.7 mm | 0.539 in | 70 °C | 0 °C | 90 ° | Phosphor Bronze | Thermoplastic | 50 µin | 1.27 µm | 10/100/1000 Base-T AutoMDIX | 8 | Solder | 1 | EMI Finger Shielded | Through Hole | Brass | RJ45 |
