SSF67PM12 Series

Catalog

SENSOR LEVEL LIQUID SWITCH

Part	Output Configuration	Voltage Rating	Voltage Rating	Operating Temperature	Material - Housing & Prism	Current	Type	Mounting Type	Output Type	Switch Actuation Level	Switch Actuation Level	Minimum Liquid Specific Gravity [Min]	Output Configuration [custom]	Switch Actuation Level
Sensata-Crydom SSF67B50B100PM12	SPST-NC	250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Dual Float)	1.969 in 3.937 in	50 mm 100 mm	0.8
Sensata-Crydom SSF67A25B175PM12		250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Single Float)	0.984 in 6.89 in		0.8	SPST-NC SPST-NO
Sensata-Crydom SSF67A25B225PM12		250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Single Float)	0.984 in 8.858 in		0.8	SPST-NC SPST-NO

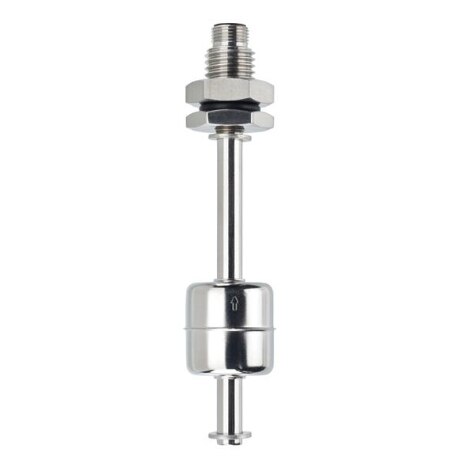

Sensata-Crydom SSF67A25B150PM12		250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Single Float)	25 mm 150 mm	0.984 " 5.906 in	0.8	SPST-NC SPST-NO
Sensata-Crydom SSF67B50B150PM12	SPST-NC	250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Dual Float)	1.969 in 5.906 " 50 mm 150 mm		0.8
Sensata-Crydom SSF67A25B125PM12		250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Single Float)	25 mm 125 mm	0.984 " 4.921 in	0.8	SPST-NC SPST-NO
Sensata-Crydom SSF67B50B250PM12	SPST-NC	250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Dual Float)	1.969 in 9.842 in	50 mm 250 mm	0.8

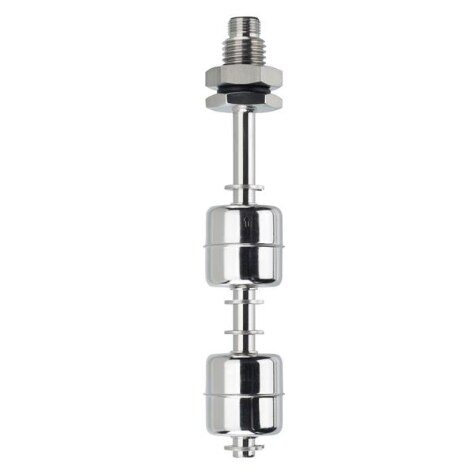

Sensata-Crydom SSF67A50A150PM12	SPST-NO	250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Dual Float)	1.969 in 5.906 " 50 mm 150 mm		0.8

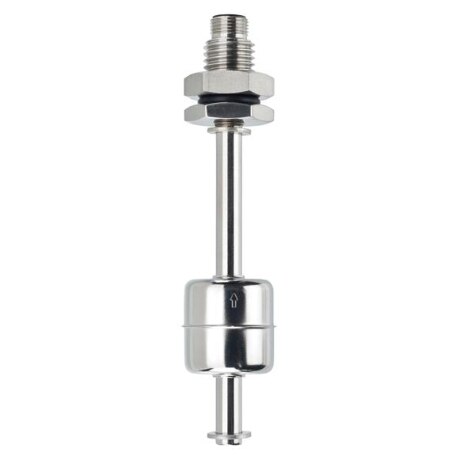

Sensata-Crydom SSF67A25B100PM12		250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Single Float)	25 mm	0.984 " 3.937 in	0.8	SPST-NC SPST-NO	100 mm

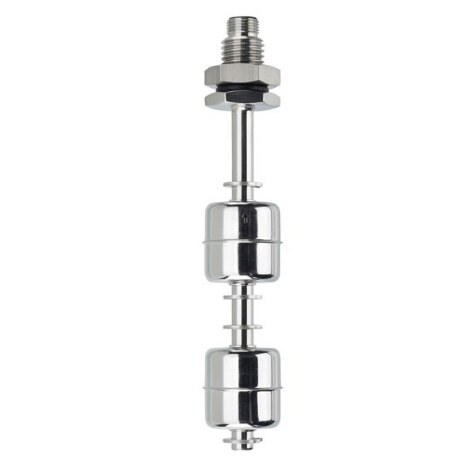

Sensata-Crydom SSF67A50A200PM12	SPST-NO	250 VAC	120 VDC	135 °C	316 Stainless Steel	600 mA	Liquid	M16x2 Thread Panel Mount	Switch (2) (Dual Float)	1.969 in 7.874 in		0.8
