P3000Z Series
Manufacturer: INFINEON
Beta
⌘K

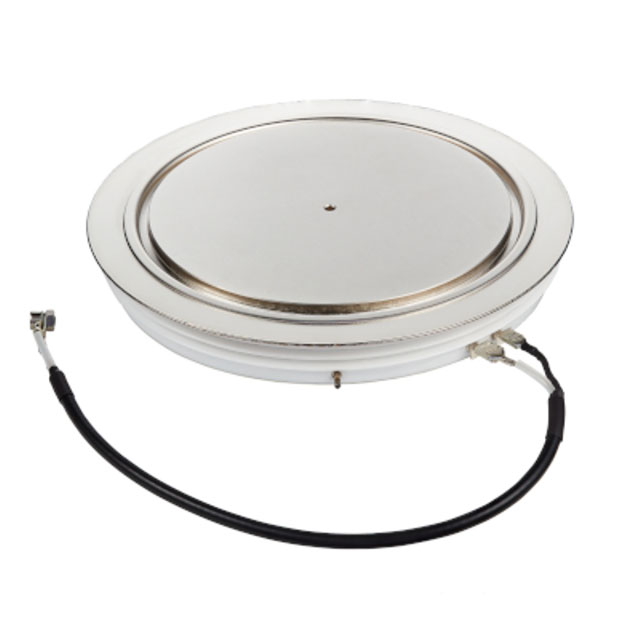

THE P3000ZL45X168 IS A 4500 V, 3000 A PRESS PACK IGBT WITHOUT INTERNAL FREEWHEELING DIODE
| Part | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | NTC Thermistor | Current - Collector Cutoff (Max) [Max] | Vce(on) (Max) @ Vge, Ic | Package / Case | Configuration | Voltage - Collector Emitter Breakdown (Max) [Max] | Mounting Type | IGBT Type | Input | Input Capacitance (Cies) @ Vce |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | BG-P16826K-1 | -40 °C | 150 °C | 200 µA | 2.5 V | TO-200AF | Single | 4500 V | Chassis Mount | Trench | Standard | 620 nF |
