180373 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

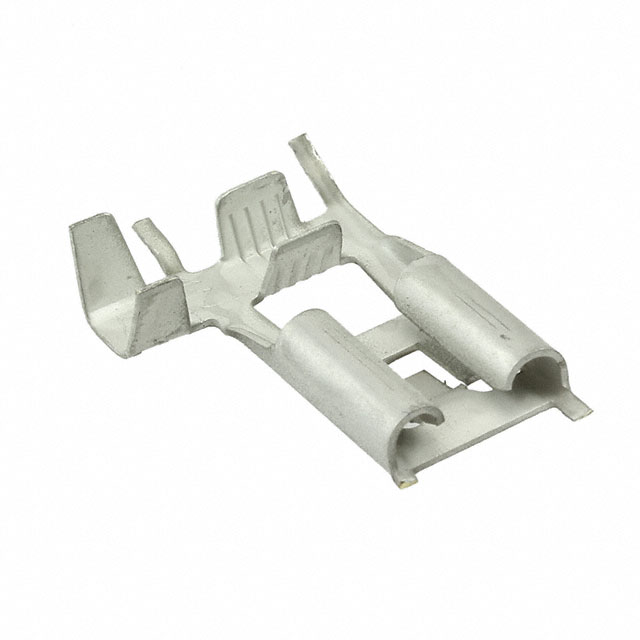

312 FLAG FASTIN-ON ROHS COMPLIANT: YES
| Part | Gender | Termination | Mounting Type | Terminal Type | Insulation | Tab Length | Tab Length | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Tab Width | Tab Width | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Tab Thickness | Tab Thickness | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female | Crimp | Free Hanging (In-Line) Right Angle | Angled - 90° Flag | Non-Insulated | 0.339 in | 8.6 mm | 13 AWG | 17 AWG | Tin | 7.92 mm | 0.312 in | 3.81 mm | 2.5 mm | 0.098 in | 0.15 " | 0.032 in | 0.81 mm | Brass |
