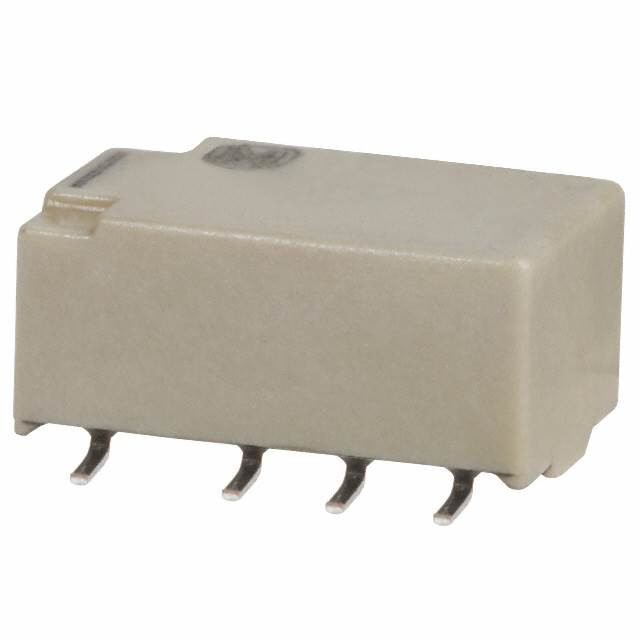

AGQ200 Series

Manufacturer: Panasonic Electronic Components

Catalog

RELAY GENERAL PURPOSE DPDT 2A 3V

Part	Coil Resistance	Load - Max Switching	Operate Time	Approval Agency	Contact Rating (Current)	Seal Rating	Contact Material	Termination Style	Release Time	Relay Type	Contact Form	Coil Type	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Mounting Type	Switching Voltage [Max]	Must Release Voltage	Coil Voltage
Panasonic Electronic Components AGQ200A03X	64.2 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A	Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	General Purpose	DPDT (2 Form C)	Non Latching	46.7 mA	85 °C	-40 C	2.25 VDC	Surface Mount	110 VDC 125 VAC	0.3 VDC
Panasonic Electronic Components AGQ200S09W	579 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A	Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	General Purpose	DPDT (2 Form C)	Non Latching	15.5 mA	85 °C	-40 C	6.75 VDC	Surface Mount	110 VDC 125 VAC	0.9 VDC	9 VDC
Panasonic Electronic Components AGQ200A03W	64.2 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A	Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	General Purpose	DPDT (2 Form C)	Non Latching	46.7 mA	85 °C	-40 C	2.25 VDC	Surface Mount	110 VDC 125 VAC	0.3 VDC
Panasonic Electronic Components AGQ200S4HX	145 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A	Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	General Purpose	DPDT (2 Form C)	Non Latching	31 mA	85 °C	-40 C	3.38 VDC	Surface Mount	110 VDC 125 VAC	0.45 VDC	4.5 VDC
Panasonic Electronic Components AGQ200S03X	64.2 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A		Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	Telecom	DPDT (2 Form C)	Non Latching	46.7 mA	85 °C	-40 C	2.25 VDC	Surface Mount	110 VDC 125 VAC	0.3 VDC
Panasonic Electronic Components AGQ200S24X	2500 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A		Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	Telecom	DPDT (2 Form C)	Non Latching	9.6 mA	85 °C	-40 C	18 VDC	Surface Mount	110 VDC 125 VAC	2.4 VDC	24 VDC
Panasonic Electronic Components AGQ200S03W	64.2 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A	Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	General Purpose	DPDT (2 Form C)	Non Latching	46.7 mA	85 °C	-40 C	2.25 VDC	Surface Mount	110 VDC 125 VAC	0.3 VDC
Panasonic Electronic Components AGQ200S1H	16 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A		Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	Telecom	DPDT (2 Form C)	Non Latching	93.8 mA	85 °C	-40 C	1.13 VDC	Surface Mount	110 VDC 125 VAC	0.15 VDC	1.5 VDC
Panasonic Electronic Components AGQ200S06	257 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A		Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	Telecom	DPDT (2 Form C)	Non Latching	23.3 mA	85 °C	-40 C	4.5 VDC	Surface Mount	110 VDC 125 VAC	0.6 VDC
Panasonic Electronic Components AGQ200S06W	257 Ohms	37.5 VA 60 W 110 W 125 VA	4 ms	BSI cURus	2 A	Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	Gull Wing	4 ms	General Purpose	DPDT (2 Form C)	Non Latching	23.3 mA	85 °C	-40 C	4.5 VDC	Surface Mount	110 VDC 125 VAC	0.6 VDC
