PDC-FD Series
Manufacturer: Bourns Inc.
Beta
⌘K

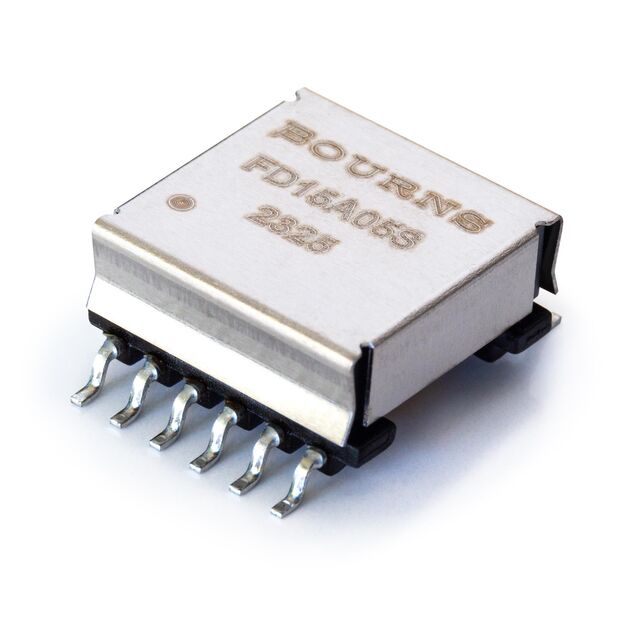

POWER TRANSFORMERS POWER TRANSFORMER, 20W, EFD15, 12V, SMD
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency | Inductance @ Frequency | Mounting Type | Voltage - Isolation | Applications | Voltage - Primary [Min] | Voltage - Primary [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.689 in | 0.709 in | 17.5 mm | 18 mm | For DC/DC Converters | 9 mm | 0.354 in | 250 kHz | 200 µH | Surface Mount | 1500 VAC | Power over Ethernet (PoE) | 36 V | 57 V | 125 °C | -40 C |
