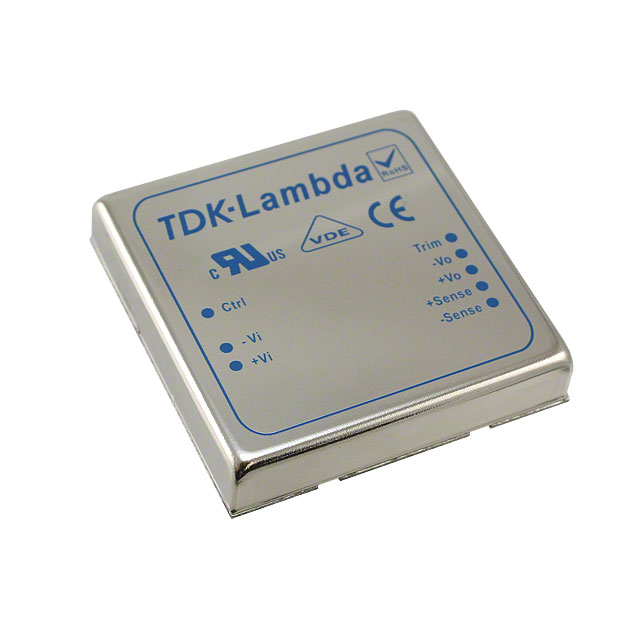

PXF60 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 60 W, 1 OUTPUT, 3.3 V

Part	Power (Watts)	Voltage - Input (Max) [Max]	Efficiency	Package / Case	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Voltage - Input (Min) [Min]	Features	Voltage - Output 1	Applications	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Current - Output (Max)
TDK Corporation PXF60-24S3P3	60 W	36 V	89 %	10-DIP Module 8 Leads	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	Isolated Module	18 V	OCP OVP Remote On/Off SCP	3.3 V	ITE (Commercial)	14 A	Through Hole	1
TDK Corporation PXF60-48S05	60 W	75 V	90 %	10-DIP Module 8 Leads	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	Isolated Module	36 V	OCP OVP Remote On/Off SCP	5 V	ITE (Commercial)	12 A	Through Hole	1
TDK Corporation PXF60-24S12	60 W	36 V	90 %	10-DIP Module 8 Leads	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	Isolated Module	18 V	OCP OVP Remote On/Off SCP	12 V	ITE (Commercial)		Through Hole	1	5 A
TDK Corporation PXF60-24S15	60 W	36 V	90 %	10-DIP Module 8 Leads	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	Isolated Module	18 V	OCP OVP Remote On/Off SCP	15 V	ITE (Commercial)	4 A	Through Hole	1
TDK Corporation PXF60-24S05	60 W	36 V	90 %	10-DIP Module 8 Leads	1.6 kV	50.8 mm	2 in	0.4 "	2 in	10.2 mm	50.8 mm	Isolated Module	18 V	OCP OVP Remote On/Off SCP	5 V	ITE (Commercial)	12 A	Through Hole	1
