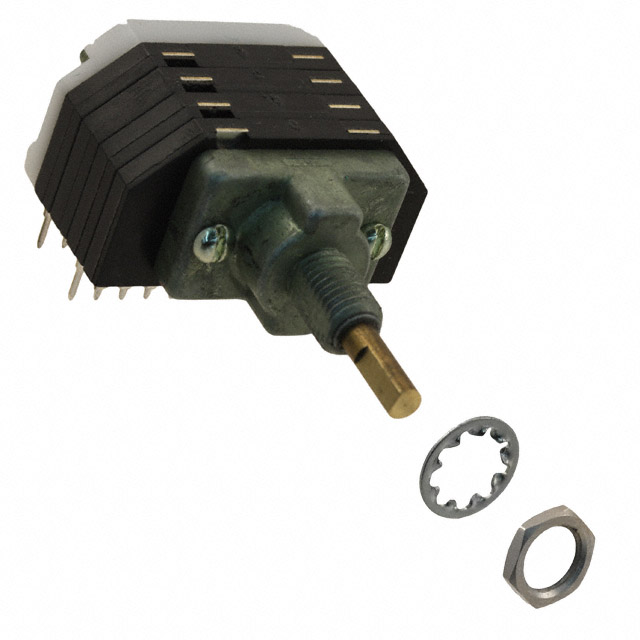

C3P0212 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-12POS 100MA 125V
| Part | Panel Cutout Dimensions [diameter] | Depth Behind Panel [custom] | Termination Style | Actuator Length [x] | Number of Poles per Deck | Mounting Type | Number of Positions [Max] | Number of Positions [Min] | Voltage Rating - DC | Contact Timing | Circuit per Deck | Actuator Type | Number of Decks | Voltage Rating - AC | Angle of Throw | Contact Material | Current Rating (Amps) | Index Stops | Contact Finish | Actuator Type [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 6.76 mm | 30 mm | PC Pin | 9.52 mm | 1 | Panel Mount Right Angle Through Hole | 12 | 2 | 28 V | Non-Shorting (BBM) | SP12T | Flatted (3.17mm Dia) | 2 | 125 V | 30 ° | Brass | 100 mA 250 mA | Adjustable | Silver | |
 Electroswitch | 6.76 mm | PC Pin | 17.5 mm | 1 | Panel Mount Right Angle Through Hole | 12 | 2 | 28 V | Non-Shorting (BBM) | SP12T | Round | 2 | 125 V | 30 ° | Brass | 100 mA 250 mA | Adjustable | Silver | 3.17 mm | |
Electroswitch | 6.76 mm | 30 mm | PC Pin | 9.52 mm | 1 | Panel Mount Right Angle Through Hole | 12 | 2 | 28 V | Shorting (MBB) | SP12T | Flatted (3.17mm Dia) | 2 | 125 V | 30 ° | Brass | 100 mA 250 mA | Adjustable | Silver |
