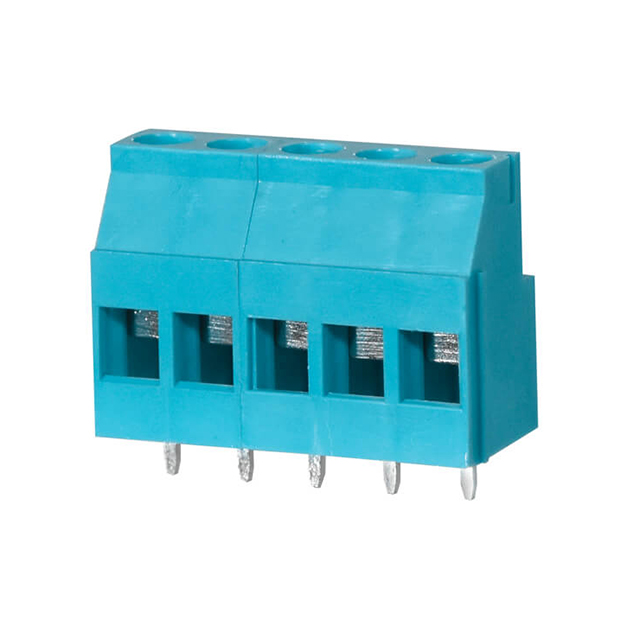

TB010 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, SCREW TYPE, 5.08

Part	Wire Gauge [Min]	Wire Gauge [Max]	Wire Termination	Number of Levels	Color	Torque - Screw	Torque - Screw	Screw Thread	Positions Per Level	Features	Pitch	Pitch	Contact Material - Plating	Clamp Material - Plating [custom]	Clamp Material - Plating [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Current	Mating Orientation	Screw Material - Plating	Positions Per Level [custom]
Same Sky (Formerly CUI Devices) TB010-508-18BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue	4.4 Lb-In	0.5 Nm	M3	18	Interlocking (Side)	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	Through Hole	-40 C	105 ░C	300 VDC	20 A	Horizontal with Board	Steel - Zinc Plated
Same Sky (Formerly CUI Devices) TB010-508-19BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue	4.4 Lb-In	0.5 Nm	M3	19	Interlocking (Side)	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	Through Hole	-40 C	105 ░C	300 VDC	20 A	Horizontal with Board	Steel - Zinc Plated
Same Sky (Formerly CUI Devices) TB010-508-05BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue	4.4 Lb-In	0.5 Nm	M3	5	Interlocking (Side)	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	Through Hole	-40 C	105 ░C	300 VDC	20 A	Horizontal with Board	Steel - Zinc Plated

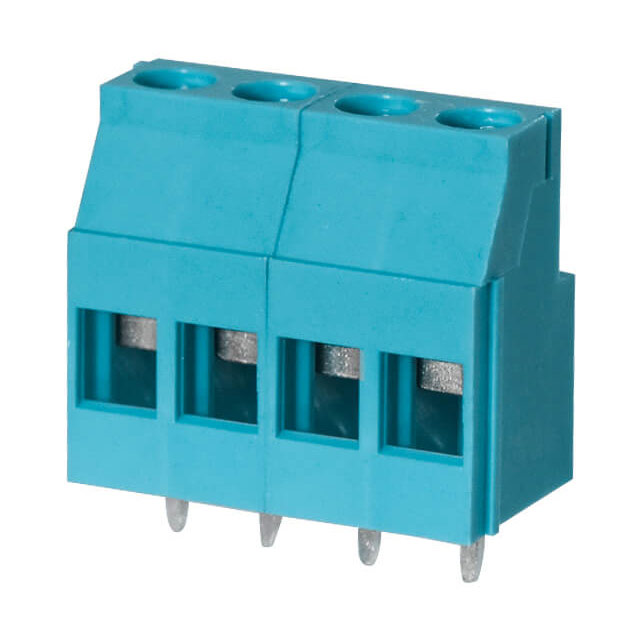

Same Sky (Formerly CUI Devices) TB010-508-04BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue	4.4 Lb-In	0.5 Nm	M3	4	Interlocking (Side)	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	Through Hole	-40 C	105 ░C	300 VDC	20 A	Horizontal with Board	Steel - Zinc Plated
Same Sky (Formerly CUI Devices) TB010-508-16BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue				16	Interlocking (Side)	5.08 mm	0.2 in				Through Hole			300 VDC	20 A	Horizontal with Board
Same Sky (Formerly CUI Devices) TB010-508-07BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue	4.4 Lb-In	0.5 Nm	M3		Interlocking (Side)	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	Through Hole	-40 C	105 ░C	300 VDC	20 A	Horizontal with Board	Steel - Zinc Plated	7
Same Sky (Formerly CUI Devices) TB010-508-24BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue	4.4 Lb-In	0.5 Nm	M3		Interlocking (Side)	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	Through Hole	-40 C	105 ░C	300 VDC	20 A	Horizontal with Board	Steel - Zinc Plated	24
Same Sky (Formerly CUI Devices) TB010-508-17BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue	4.4 Lb-In	0.5 Nm	M3	17	Interlocking (Side)	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	Through Hole	-40 C	105 ░C	300 VDC	20 A	Horizontal with Board	Steel - Zinc Plated
Same Sky (Formerly CUI Devices) TB010-508-09BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue				9	Interlocking (Side)	5.08 mm	0.2 in				Through Hole			300 VDC	20 A	Horizontal with Board
Same Sky (Formerly CUI Devices) TB010-508-15BE	12 AWG	26 AWG	Screw - Rising Cage Clamp	1	Blue	4.4 Lb-In	0.5 Nm	M3	15	Interlocking (Side)	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Nickel Plated	Copper Alloy	Through Hole	-40 C	105 ░C	300 VDC	20 A	Horizontal with Board	Steel - Zinc Plated
