MX48A02H Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PIN HEADER 2 POS R/A
| Part | Fastening Type | Features | Number of Positions | Insulation Color | Connector Type | Number of Rows | Insulation Height [z] | Insulation Height | Contact Finish - Mating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Style | Mounting Type | Shrouding | Contact Type | Contact Material | Number of Positions Loaded | Insulation Material | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

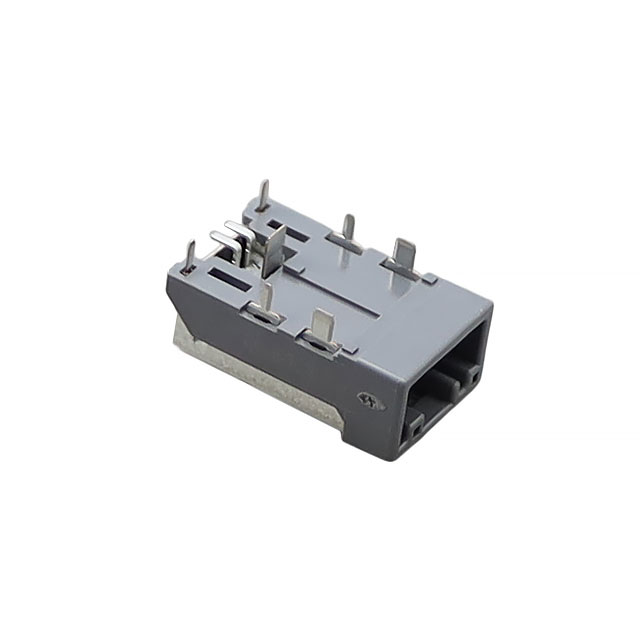

 JAE Electronics | Latch Holder | Board Guide Shielded | 2 | Gray | Header | 1 | 0.327 " | 8.3 mm | Gold | Tin | 0.079 " | 2 mm | Solder | 85 °C | -40 C | Board to Cable/Wire | Surface Mount Right Angle Through Hole | Shrouded - 4 Wall | Male Pin | Copper Alloy | All | Polyphenylene Sulfide (PPS) Glass Filled | |

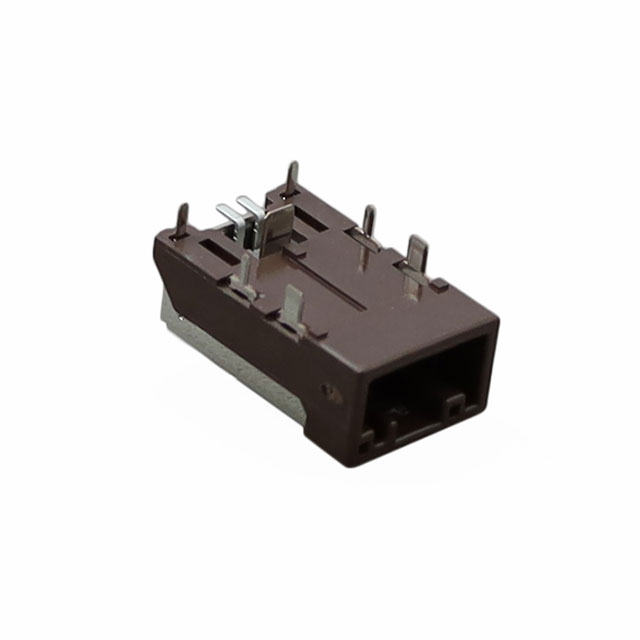

 JAE Electronics | Shielded Solder Retention | 2 | Brown | Header | 1 | 0.331 in | 8.4 mm | Gold | Tin | 0.079 " | 2 mm | Solder | Board to Cable/Wire | Panel Mount Right Angle Through Hole | Shrouded - 4 Wall | Male Pin | Copper Alloy | All | Polyphenylene Sulfide (PPS) Glass Filled | Square |
