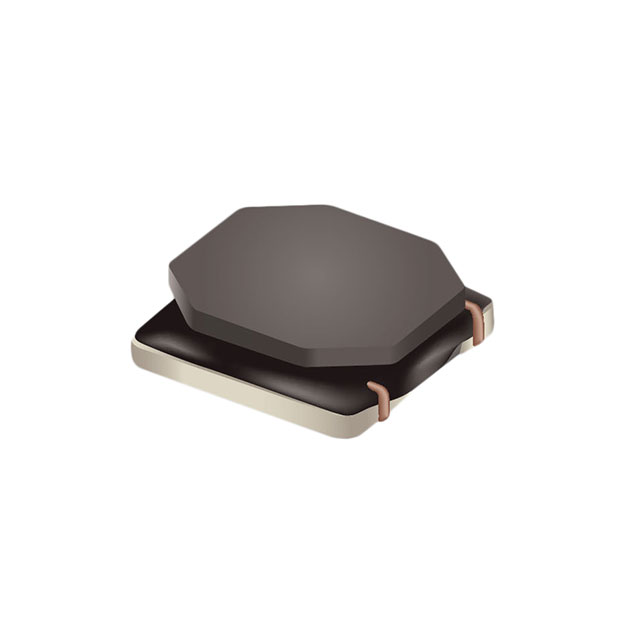

SRN4012TA Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR, AEC-Q200, 2.2UH, 1.9A, 20%
| Part | Current Rating (Amps) | Q @ Freq | Material - Core | Current - Saturation (Isat) | Package / Case | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | DC Resistance (DCR) | Type | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Tolerance | Shielding | Ratings | Inductance Frequency - Test | Frequency - Self Resonant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1.9 A | 6 100 kHz | Ferrite | 1.65 A | Nonstandard | Surface Mount | 1.2 mm | 0.047 " | 0.157 " | 4 mm | 0.157 in | 4 mm | 60 mOhm | Drum Core Wirewound | 125 °C | -40 C | 2.2 µH | 20 % | Shielded | AEC-Q200 | 100 kHz | |
Bourns Inc. | 2.2 A | 6 100 kHz | Ferrite | 2.8 A | Nonstandard | Surface Mount | 1.2 mm | 0.047 " | 0.157 " | 4 mm | 0.157 in | 4 mm | 42 mOhms | Drum Core Wirewound | 125 °C | -40 C | 1 µH | 20 % | Shielded | AEC-Q200 | 100 kHz | 100 MHz |
Bourns Inc. | 750 mA | 10 100 kHz | Ferrite | 0.65 A | Nonstandard | Surface Mount | 1.2 mm | 0.047 " | 0.157 " | 4 mm | 0.157 in | 4 mm | 260 mOhm | Drum Core Wirewound | 125 °C | -40 C | 15 µH | 20 % | Shielded | AEC-Q200 | 100 kHz | 24 MHz |
 Bourns Inc. | 1.7 A | 6 100 kHz | Ferrite | 1.4 A | Nonstandard | Surface Mount | 1.2 mm | 0.047 " | 0.157 " | 4 mm | 0.157 in | 4 mm | 70 mOhm | Drum Core Wirewound | 125 °C | -40 C | 3.3 µH | 20 % | Shielded | AEC-Q200 | 100 kHz | 60 MHz |
