DCP-USBA Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CONNECTOR ADAPTER, USB 2.0 A, 4 POSITIONS, RECEPTACLE, USB 2.0 B, 4 POSITIONS, RECEPTACLE
| Part | Convert To (Adapter End) | Mounting Type | Convert From (Adapter End) | Material Flammability Rating | Shell/Shielding Material | Insulation Color | Contact Finish | Ingress Protection | Specifications | Operating Temperature [Max] | Operating Temperature [Min] | Number of Contacts | Features | Gender | Termination | Mounting Feature | Connector Type | Number of Ports | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

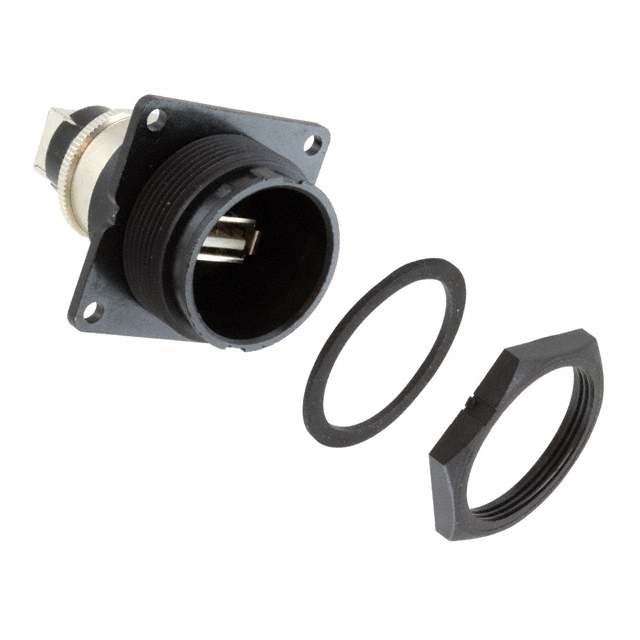

 SWITCHCRAFT/CONXALL | USB-B (USB TYPE-B) Receptacle | Bulkhead - Front Side Nut Panel Mount | USB-A (USB TYPE-A) Receptacle | ||||||||||||||||

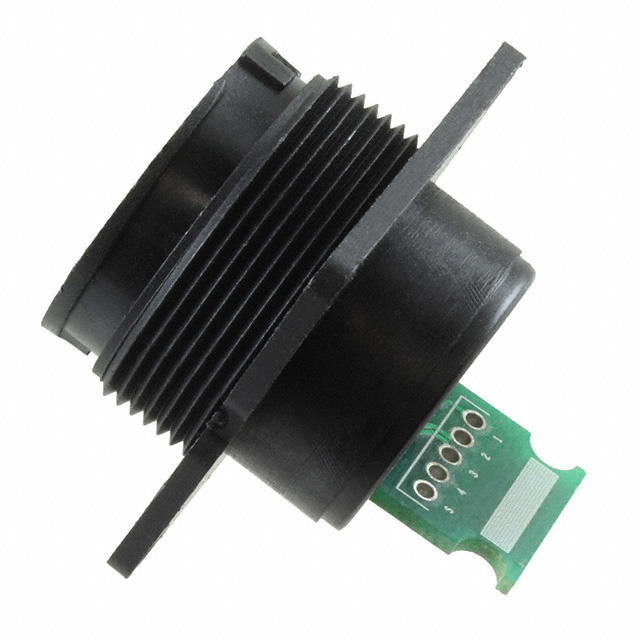

 SWITCHCRAFT/CONXALL | Panel Mount | UL94 V-0 | Copper Alloy | White | Gold | IP67/IP68 | USB 2.0 | 50 °C | 0 °C | 4 | Circular Threaded Coupling | Receptacle | PCB | Bulkhead - Front Side Nut | USB-A (USB TYPE-A) | 1 | 1.5 A | ||

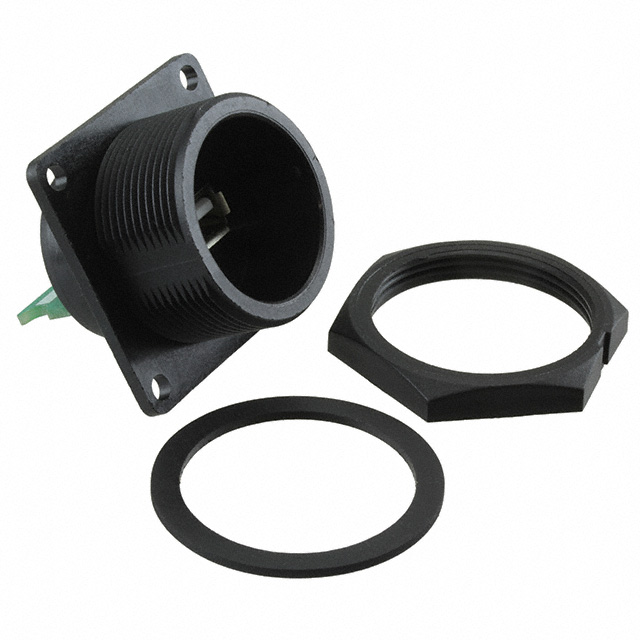

 SWITCHCRAFT/CONXALL | USB-B (USB TYPE-B) Receptacle | Bulkhead - Front Side Nut Panel Mount | USB-A (USB TYPE-A) Receptacle | ||||||||||||||||
 SWITCHCRAFT/CONXALL | Panel Mount | UL94 V-0 | Copper Alloy | White | Gold | IP67/IP68 | USB 2.0 | 85 °C | -25 °C | 4 | Circular Bayonet Coupling | Receptacle | PCB | Bulkhead - Front Side Nut | USB-A (USB TYPE-A) | 1 | 1.5 A |
