MP5016 Series

Catalog

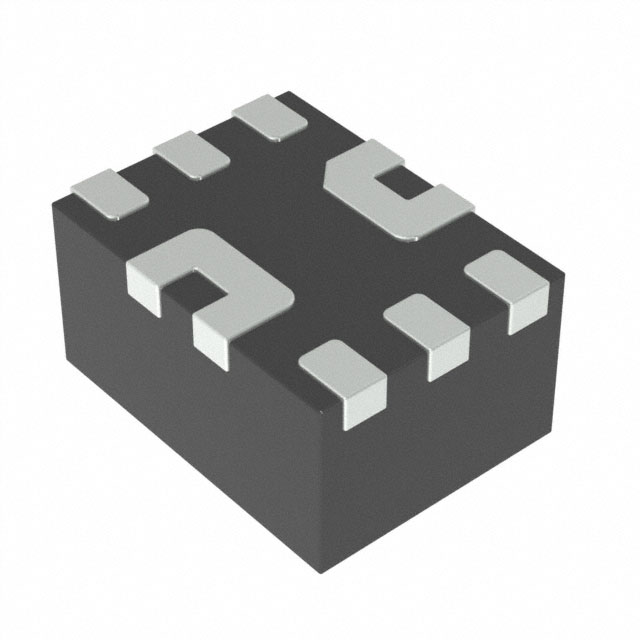

POWER LOAD DISTRIBUTION SWITCH, ACTIVE HIGH, 1 OUTPUT, 22 V INPUT, 5 A, 0.043 OHM, QFN-10

Part	Ratio - Input:Output	Output Configuration	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Fault Protection	Supplier Device Package	Supplier Device Package	Package / Case	Rds On (Typ)	Interface	Current - Output (Max)	Features	Number of Outputs	Voltage - Load
Monolithic Power Systems Inc. MP5016HGQH-P	1:1	High Side	N-Channel	-40 C	125 °C	General Purpose	22 V	2.7 V	Surface Mount	Over Current Over Voltage	1.5 KA 2	10-QFN	10-PowerVFQFN	43 mOhm	On/Off	5 A	Slew Rate Controlled	1
Monolithic Power Systems Inc. MP5016HGQH-Z	1:1	High Side	N-Channel	-40 C	125 °C	General Purpose	22 V	2.7 V	Surface Mount	Over Current Over Voltage	1.5 KA 2	10-QFN	10-PowerVFQFN	43 mOhm	On/Off	5 A	Slew Rate Controlled	1
Monolithic Power Systems Inc. MP5016GQH-Z	1:1	High Side	N-Channel	-40 C	125 °C	General Purpose			Surface Mount	Over Current Over Voltage	1.5 KA 2	10-QFN	10-PowerVFQFN	43 mOhm	On/Off	5 A	Slew Rate Controlled	1	15 V
Monolithic Power Systems Inc. MP5016GQH-P	1:1	High Side	N-Channel	-40 C	125 °C	General Purpose			Surface Mount	Over Current Over Voltage	1.5 KA 2	10-QFN	10-PowerVFQFN	43 mOhm	On/Off	5 A	Slew Rate Controlled	1	15 V
