3625 Series

Catalog

CBL RIBN 40COND 0.039 GRY METER

Part	Spool Size [x]	Spool Size [x]	Conductor Material	First Conductor Mark	Insulation Resistance	Length [x]	Length [x]	Ratings	Cable Type	Wire Gauge	Number of Conductors	Length	Jacket (Insulation) Material	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Thickness	Ribbon Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Pitch	Pitch	Jacket Color	Length	Length
3M Electronic Specialty 3625/40 100M	328.1 ft	100 m	Copper Tinned	Red	10 GOhm	100 m	328.1 ft	UL Style 2651	Flat Cable	28 AWG	40	Enter Number of Meters in Order Quantity	Poly-Vinyl Chloride (PVC)	1.575 in	40 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Zippable	1 mm	0.039 in	Gray

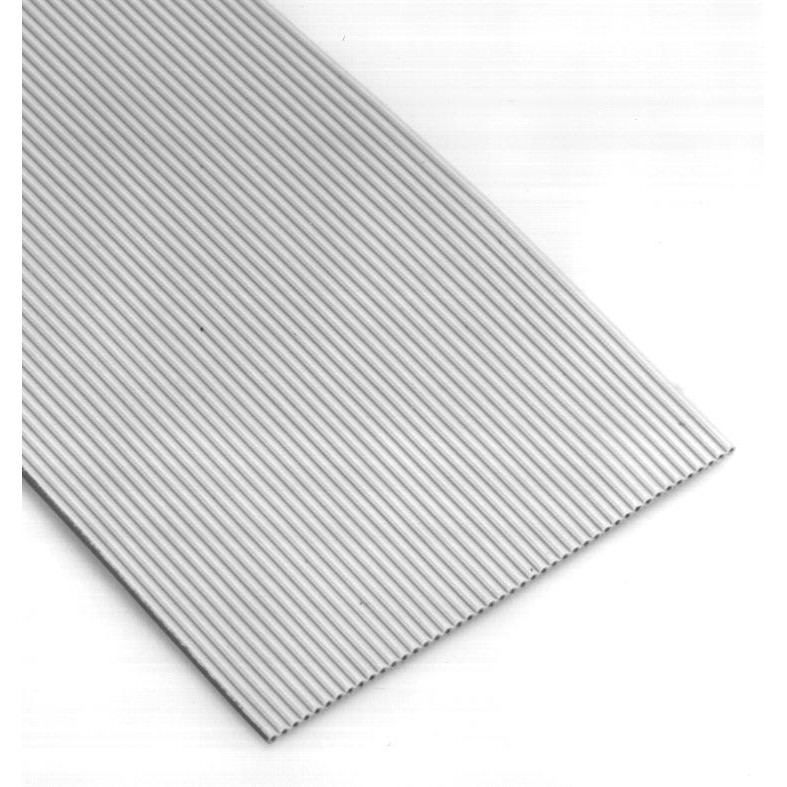

3M Electronic Specialty 3625/26SF			Copper Tinned	Red	10 GOhm				Flat Cable	28 AWG	26		Poly-Vinyl Chloride (PVC)	1.024 in	26.01 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Splice Free	1 mm	0.039 in	Gray	30 m	98.4 ft

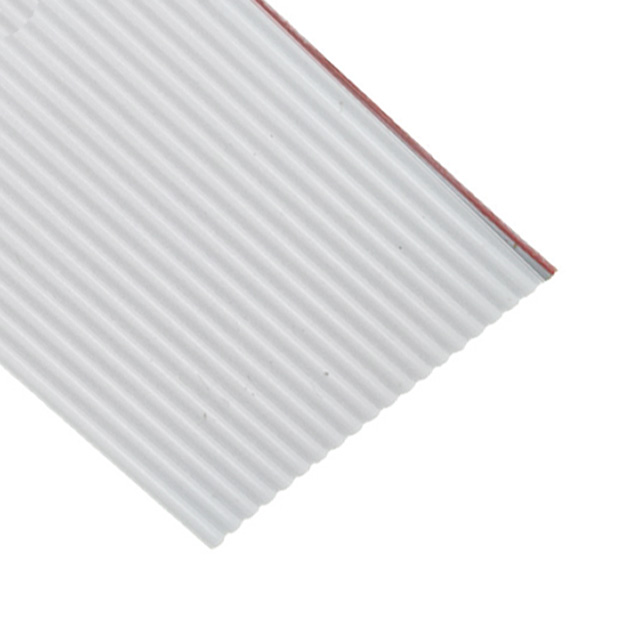

3M Electronic Specialty 3625/20SF 30M			Copper Tinned	Red	10 GOhm			UL Style 2651	Flat Cable	28 AWG	20		Poly-Vinyl Chloride (PVC)	0.787 in	20 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Zippable	1 mm	0.039 in	Gray	1 m 30 m	3.28 ft 98.4 ft
3M Electronic Specialty 3625/16 100MSF			Copper Tinned	Red	10 GOhm	100 m	328.1 ft	UL Style 2651	Flat Cable	28 AWG	16		Poly-Vinyl Chloride (PVC)	0.63 in	16 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Splice Free Zippable	1 mm	0.039 in	Gray	5 m 25 m 50 m	16.4 ft 82 ft 164 ft
3M Electronic Specialty 3625/40 100MSF			Copper Tinned	Red	10 GOhm	100 m	328.1 ft	UL Style 2651	Flat Cable	28 AWG	40		Poly-Vinyl Chloride (PVC)	1.575 in	40 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Splice Free Zippable	1 mm	0.039 in	Gray	5 m 25 m 50 m	16.4 ft 82 ft 164 ft
3M Electronic Specialty 3625/50SF 30M			Copper Tinned	Red	10 GOhm			UL Style 2651	Flat Cable	28 AWG	50		Poly-Vinyl Chloride (PVC)	1.969 in	50.01 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Zippable	1 mm	0.039 in	Gray	1 m 5 m 30 m	3.28 ft 16.4 ft 98.4 ft
3M Electronic Specialty 3625/22 100MSF	328.1 ft	100 m	Copper Tinned	Red	10 GOhm	100 m	328.1 ft	UL Style 2651	Flat Cable	28 AWG	22	Enter Number of Meters in Order Quantity	Poly-Vinyl Chloride (PVC)	0.866 in	22 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Splice Free Zippable	1 mm	0.039 in	Gray	5 m 25 m 50 m	16.4 ft 82 ft 164 ft

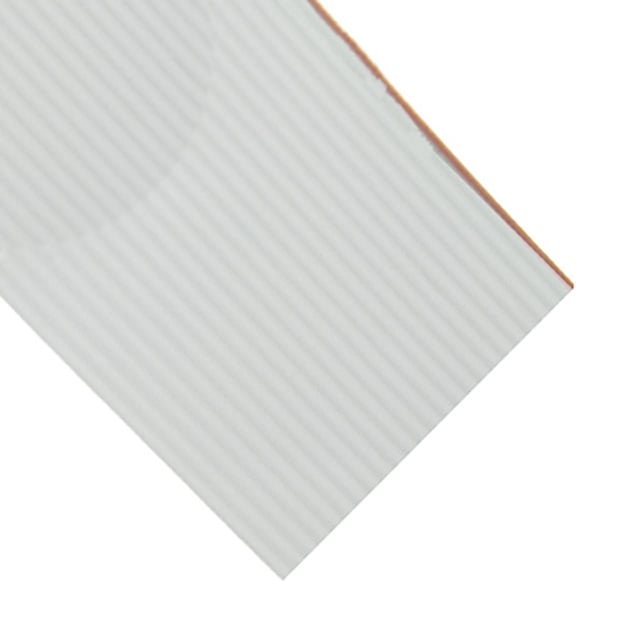

3M Electronic Specialty 3625/24 100MSF			Copper Tinned	Red	10 GOhm	100 m	328.1 ft	UL Style 2651	Flat Cable	28 AWG	24		Poly-Vinyl Chloride (PVC)	0.945 in	24 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Splice Free Zippable	1 mm	0.039 in	Gray	5 m 25 m 50 m	16.4 ft 82 ft 164 ft
3M Electronic Specialty 3625/44 100M			Copper Tinned	Red	10 GOhm	100 m	328.1 ft	UL Style 2651	Flat Cable	28 AWG	44		Poly-Vinyl Chloride (PVC)	1.732 in	43.99 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Zippable	1 mm	0.039 in	Gray	5 m 25 m 50 m	16.4 ft 82 ft 164 ft
3M Electronic Specialty 3625/26 30M			Copper Tinned	Red	10 GOhm			UL Style 2651	Flat Cable	28 AWG	26	Enter Number of Meters in Order Quantity	Poly-Vinyl Chloride (PVC)	1.024 in	26.01 mm	0.89 mm	0.035 in	36 AWG	7 Strands	300 VDC	-20 ░C	105 ░C	Unshielded	Zippable	1 mm	0.039 in	Gray	1 m 5 m 30 m	3.28 ft 16.4 ft 98.4 ft
