GMSTBV Series
Manufacturer: Phoenix Contact
Beta
⌘K

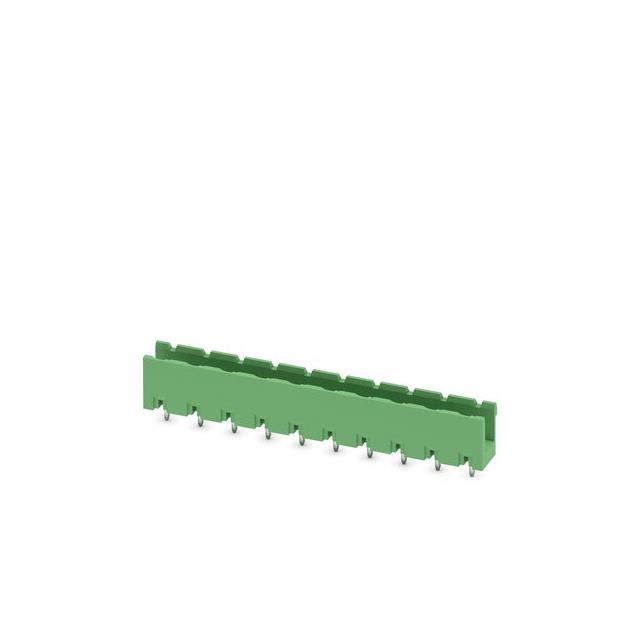

PLUGGABLE TERMINAL BLOCKS 10 POS 7.5MM PITCH THROUGH HOLE HEADER
| Part | Material Flammability Rating | Contact Tail Length | Contact Tail Length | Housing Material | Insulation Height | Insulation Height | Termination Style | Number of Levels | Color | Voltage - IEC | Positions Per Level | Contact Mating Finish | Mounting Type | Header Orientation | Voltage - UL | Type | Number of Positions | Current - IEC | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | UL94 V-0 | 3.9 mm | 0.154 in | Polyamide (PA) Nylon | 0.472 " | 12 mm | Solder | 1 | Green | 630 V | 10 | Tin | Through Hole | Vertical | 300 V | Header Male Pins Shrouded (2 Side) | 10 | 12 A | 0.295 in | 7.5 mm |
 Phoenix Contact | UL94 V-0 | 3.9 mm | 0.154 in | Polyamide (PA) Nylon | 0.472 " | 12 mm | Solder | 1 | Green | 630 V | 3 | Tin | Through Hole | Vertical | 300 V | Header Male Pins Shrouded (2 Side) | 12 A | 0.295 in | 7.5 mm |
