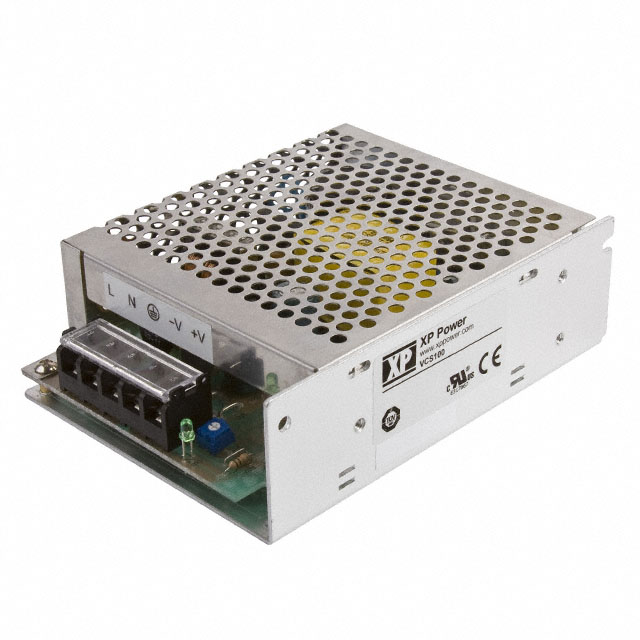

VCS100 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 15V 100W
| Part | Minimum Load Required | Current - Output 1 | Features | Approval Agency | Mounting Type | Power (Watts) | Voltage - Output 1 | Standard Number | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Number of Outputs | Voltage - Isolation | Applications | Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 6.67 A | Adjustable Output DC Input Capable Universal Input | CB | Chassis Mount | 100 W | 15 V | 62368-1 | 1.65 " | 6.26 in | 42 mm | 3.87 in | 98.2 mm | 159 mm | 86 % | 1 | 3000 V | ITE (Commercial) | Enclosed | 70 °C | -25 °C | ||
XP Power | Adjustable Output DC Input Capable Universal Input | CB | Chassis Mount | 70 W | 5 V | 62368-1 | 1.65 " | 6.26 in | 42 mm | 3.87 in | 98.2 mm | 159 mm | 78 % | 1 | 3000 V | ITE (Commercial) | Enclosed | 70 °C | -25 °C | 14 A |
