ECL30 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER +/-12V 30W
| Part | Minimum Load Required | Standard Number | Voltage - Output 2 | Number of Outputs | Mounting Type | Voltage - Output 1 | Current - Output 1 | Applications | Features | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Efficiency | Current - Output 2 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension | Size / Dimension [y] | Voltage - Output 3 | Current - Output 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

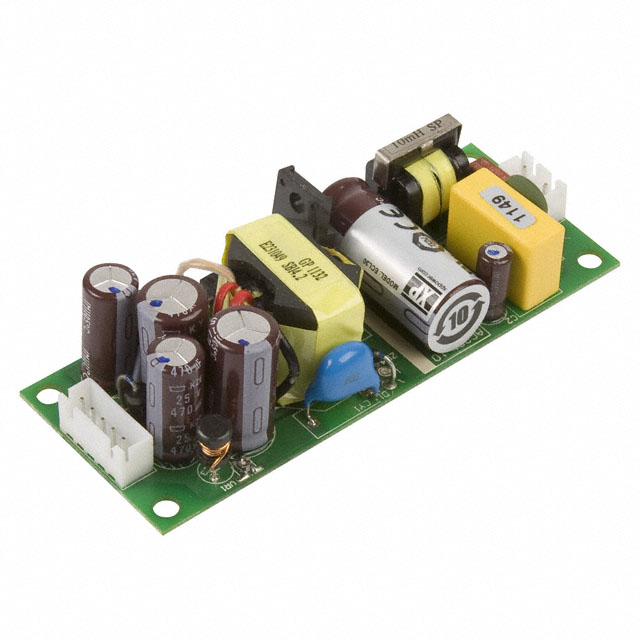

 XP Power | 62368-1 | -12 V | 2 | Chassis Mount | 12 V | 1.3 A | ITE (Commercial) | Adjustable Output DC Input Capable Universal Input | Open Frame | 70 °C | -20 °C | 3000 V | 84 % | 1.3 A | 34.6 mm | 87.9 mm | 1.36 in | 22.4 mm | 0.88 in | 3.46 in | 30 Watts | |||||||

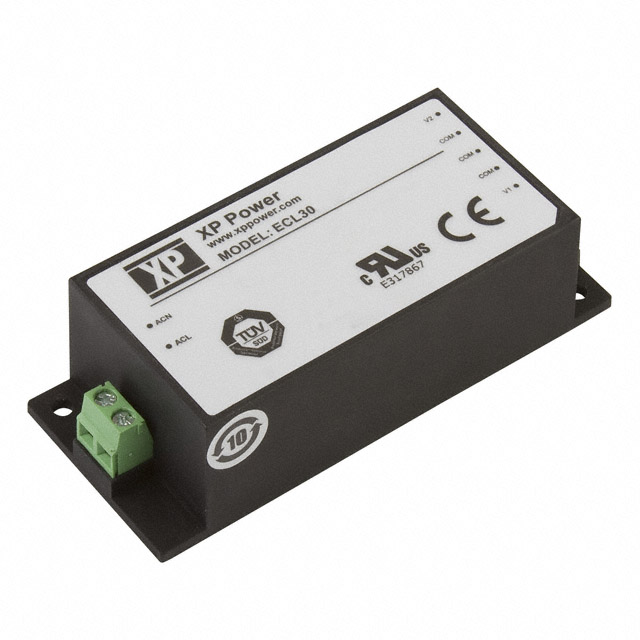

 XP Power | 62368-1 | -12 V | 2 | Chassis Mount | 12 V | 1.3 A | ITE (Commercial) | Adjustable Output DC Input Capable Universal Input | Enclosed | 70 °C | -20 °C | 3000 V | 84 % | 1.3 A | 30 Watts | 3.78 in | 1.12 " | 28.5 mm 40 mm 96 mm | 1.57 " | |||||||||
XP Power | 62368-1 | 12 V | 3 | Chassis Mount | 5 V | 3 A | ITE (Commercial) | Adjustable Output DC Input Capable Universal Input | Open Frame | 70 °C | -20 °C | 3000 V | 83 % | 630 mA | 34.6 mm | 87.9 mm | 1.36 in | 22.4 mm | 0.88 in | 3.46 in | 30 Watts | -12 V | 630 mA | |||||
XP Power | 62368-1 | 12 V | 2 | Chassis Mount | 5 V | 3 A | ITE (Commercial) | Adjustable Output DC Input Capable Universal Input | Open Frame | 70 °C | -20 °C | 3000 V | 81 % | 1.3 A | 34.6 mm | 87.9 mm | 1.36 in | 22.4 mm | 0.88 in | 3.46 in | 30 Watts |
