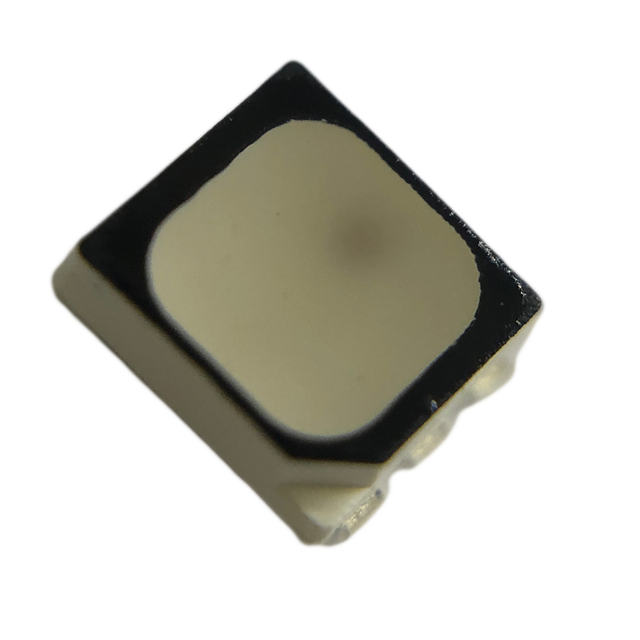

QBLP680 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K
LED RGB DIFFUSED 6PLCC SMD
| Part | Lens Color | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Lens Transparency | Size / Dimension [y] | Size / Dimension [x] | Lens Style | Viewing Angle | Mounting Type | Height (Max) [Max] [z] | Supplier Device Package | Wavelength - Dominant | Current - Test | Package / Case | Configuration | Voltage - Forward (Vf) (Typ) | Lens Size | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QT Brightek (QTB) | White | 350 mcd | 2300 mcd | 900 mcd | Diffused | 2.8 mm | 3.2 mm | Round with Flat Top | 120 ° | Surface Mount | 1.8 mm | 6-PLCC | 470 nm 525 nm 620 nm | 20mA Blue 20mA Green 20mA Red | 6-SMD J-Lead | Independent | 2 V 2.9 V 3 V | 2.5 mm | Blue Green Red |
