087340 Series

Manufacturer: Molex

Catalog

CONN RCPT 14POS 0.079 GOLD SMD

Part	Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Shape	Number of Rows	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Number of Positions Loaded	Mounting Type	Insulation Height	Insulation Height	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Termination	Contact Type	Applications	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Material Flammability Rating
Molex 0873401423	Board to Board Cable	105 ░C	-55 °C	14	Square	2	Board Guide	30 Áin	0.76 Ám	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm

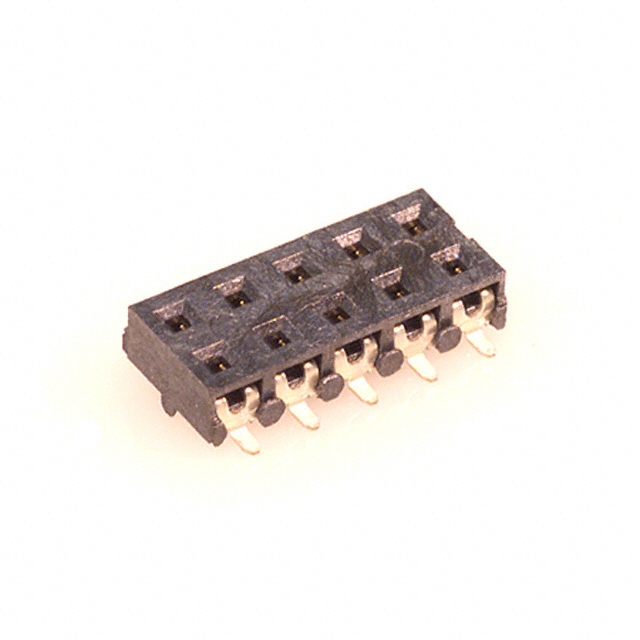

Molex 0873401022	Board to Board Cable	105 ░C	-55 °C	10	Square	2	Board Guide	15 µin	0.38 µm	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin-Lead	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm
Molex 0873401013	Board to Board Cable	105 ░C	-55 °C	10	Square	2		30 Áin	0.76 Ám	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm

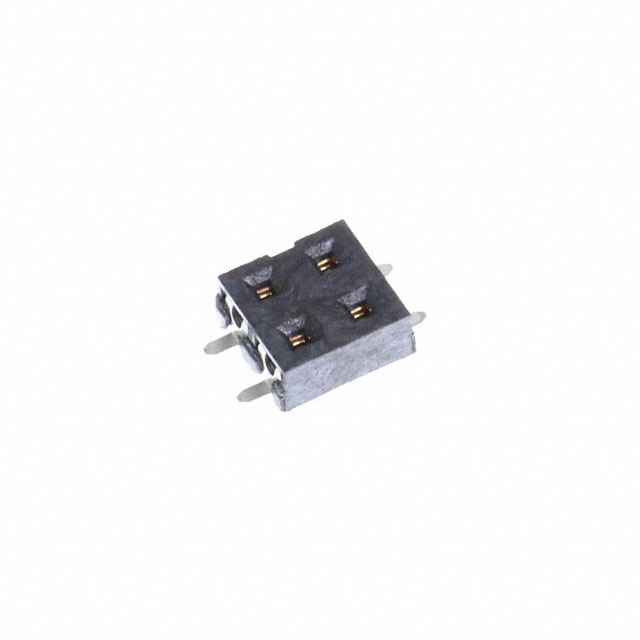

Molex 0873400476	Board to Board Cable	105 ░C	-55 °C	4	Square	2	Pick and Place	15 µin	0.38 µm	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm	Phosphor Bronze	UL94 V-0
Molex 0873401824	Board to Board Cable	105 ░C	-55 °C	18	Square	2	Board Guide	15 µin	0.38 µm	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm

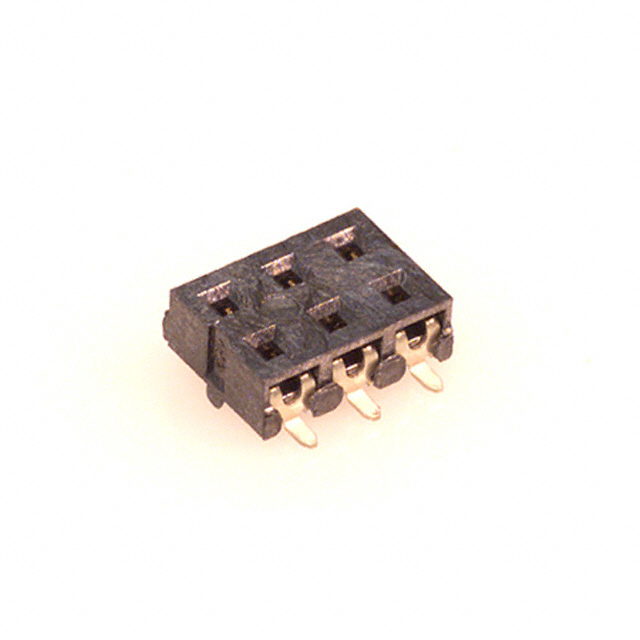

Molex 0873400622	Board to Board Cable	105 ░C	-55 °C	6	Square	2	Board Guide	15 µin	0.38 µm	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin-Lead	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm
Molex 0873400822	Board to Board Cable	105 ░C	-55 °C	8	Square	2	Board Guide	15 µin	0.38 µm	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin-Lead	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm
Molex 0873402096	Board to Board Cable	105 ░C	-55 °C	20	Square	2	Board Guide Pick and Place	15 µin	0.38 µm	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm	Phosphor Bronze	UL94 V-0
Molex 0873401214	Board to Board Cable	105 ░C	-55 °C	12	Square	2		15 µin	0.38 µm	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm

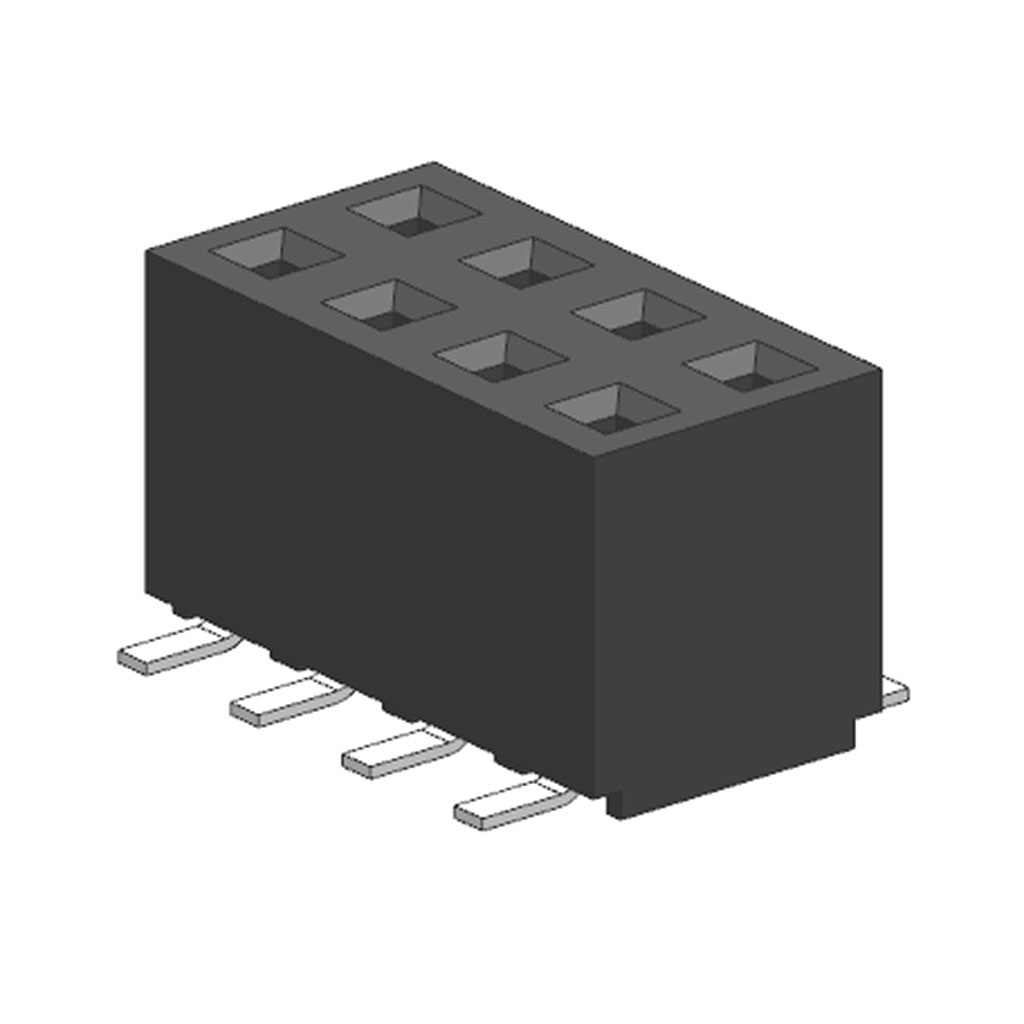

Molex 0873400413	Board to Board Cable	105 ░C	-55 °C	4	Square	2		30 Áin	0.76 Ám	Receptacle	Push-Pull	All	Surface Mount	0.085 "	2.15 mm	Black	74.8 Áin	1.9 Ám	125 VAC	Tin	0.079 in	2 mm	Gold	Solder	Female Socket	Automotive General Purpose Telecommunications	0.079 in	2 mm
